Node-RED Tips - Dashboard Edition

There is usually more than one way to complete a given task in software, and Node-RED is no exception. In each of this series of blog posts, we are going to share three useful tips to save yourself time when working on your flows.

In this Node-RED Tips article, we are going to focus on Node-RED Dashboard. Dashboard is a great tool for creating HMI (Human Machine Interfaces), it's also the most popular custom node for Node-RED with thousands of downloads per week.

1. Responsive layouts (almost)

Responsive design is the ability for a webpage to change its content to best fit the features of a device used to view the page. For example, when viewing a graph on a mobile phone or a laptop the available screen space differs significantly in size as well as aspect-ratio.

Dashboard doesn't offer the feature to change graph sizes based on the screen of a viewing device. That being said, there is one trick you can use to make your dashboards a lot more useful on small and large screens alike.

Place your content into Dashboard 'groups', those groups can make use of wider screens by sitting side by side where the screen is big enough while stacking vertically on smaller devices.

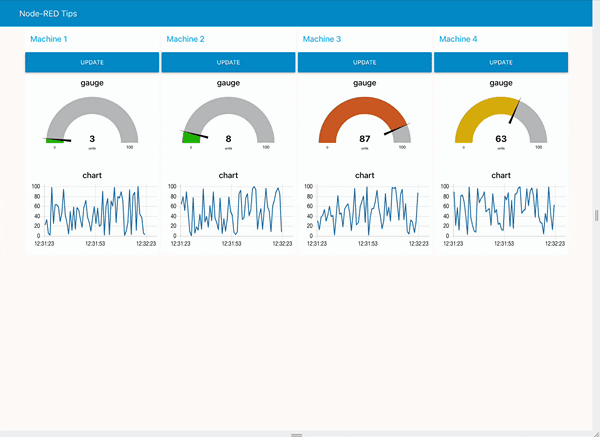

The image below shows what happens when you change the screen size for this dashboard.

If you'd like to try this out on your own Node-RED, you can import the flow below.

{% renderFlow 500 %} {"id":"e351b1251dfbc2f7","type":"tab","label":"Flow 1","disabled":false,"info":"","env":},{"id":"d388b48fcbed93a1","type":"ui_gauge","z":"e351b1251dfbc2f7","name":"","group":"ba1ff527abfa5261","order":2,"width":0,"height":0,"gtype":"gage","title":"gauge","label":"units","format":"","min":0,"max":"100","colors":"#00b500","#e6e600","#ca3838","seg1":"","seg2":"","diff":false,"className":"","x":350,"y":80,"wires":},{"id":"80780894450cfb6d","type":"ui_button","z":"e351b1251dfbc2f7","name":"","group":"ba1ff527abfa5261","order":1,"width":0,"height":0,"passthru":false,"label":"Update","tooltip":"","color":"","bgcolor":"","className":"","icon":"","payload":"","payloadType":"str","topic":"topic","topicType":"msg","x":80,"y":80,"wires":[["49e78ff51c3a1ea3"]]},{"id":"07b44990e5d5b5f6","type":"ui_chart","z":"e351b1251dfbc2f7","name":"","group":"ba1ff527abfa5261","order":3,"width":0,"height":0,"label":"chart","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"60","cutout":0,"useOneColor":false,"useUTC":false,"colors":"#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5","outputs":1,"useDifferentColor":false,"className":"","x":350,"y":120,"wires":[[]]},{"id":"1482bcf69325aa92","type":"inject","z":"e351b1251dfbc2f7","name":"","props":,"repeat":"1","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":90,"y":120,"wires":[["49e78ff51c3a1ea3"]]},{"id":"49e78ff51c3a1ea3","type":"random","z":"e351b1251dfbc2f7","name":"","low":"0","high":"100","inte":"true","property":"payload","x":220,"y":100,"wires":[["d388b48fcbed93a1","07b44990e5d5b5f6"]]},{"id":"38996d8eb9f6535d","type":"ui_gauge","z":"e351b1251dfbc2f7","name":"","group":"f6052a3dccc77ea3","order":2,"width":0,"height":0,"gtype":"gage","title":"gauge","label":"units","format":"","min":0,"max":"100","colors":"#00b500","#e6e600","#ca3838","seg1":"","seg2":"","diff":false,"className":"","x":350,"y":240,"wires":},{"id":"cf5599fbda28e614","type":"ui_button","z":"e351b1251dfbc2f7","name":"","group":"f6052a3dccc77ea3","order":1,"width":0,"height":0,"passthru":false,"label":"Update","tooltip":"","color":"","bgcolor":"","className":"","icon":"","payload":"","payloadType":"str","topic":"topic","topicType":"msg","x":80,"y":240,"wires":[["f093c63e17a620ba"]]},{"id":"936438ebf9eef986","type":"ui_chart","z":"e351b1251dfbc2f7","name":"","group":"f6052a3dccc77ea3","order":3,"width":0,"height":0,"label":"chart","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"60","cutout":0,"useOneColor":false,"useUTC":false,"colors":"#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5","outputs":1,"useDifferentColor":false,"className":"","x":350,"y":280,"wires":[[]]},{"id":"60a40faa335f943e","type":"inject","z":"e351b1251dfbc2f7","name":"","props":,"repeat":"1","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":90,"y":280,"wires":[["f093c63e17a620ba"]]},{"id":"f093c63e17a620ba","type":"random","z":"e351b1251dfbc2f7","name":"","low":"0","high":"100","inte":"true","property":"payload","x":220,"y":260,"wires":[["38996d8eb9f6535d","936438ebf9eef986"]]},{"id":"e284b90164e648e6","type":"ui_gauge","z":"e351b1251dfbc2f7","name":"","group":"1e4a72d62ed7564c","order":2,"width":0,"height":0,"gtype":"gage","title":"gauge","label":"units","format":"","min":0,"max":"100","colors":"#00b500","#e6e600","#ca3838","seg1":"","seg2":"","diff":false,"className":"","x":350,"y":380,"wires":},{"id":"cabe7a8150dbfaf6","type":"ui_button","z":"e351b1251dfbc2f7","name":"","group":"1e4a72d62ed7564c","order":1,"width":0,"height":0,"passthru":false,"label":"Update","tooltip":"","color":"","bgcolor":"","className":"","icon":"","payload":"","payloadType":"str","topic":"topic","topicType":"msg","x":80,"y":380,"wires":[["7b9862186954c4b3"]]},{"id":"ac116116c56e6c3c","type":"ui_chart","z":"e351b1251dfbc2f7","name":"","group":"1e4a72d62ed7564c","order":3,"width":0,"height":0,"label":"chart","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"60","cutout":0,"useOneColor":false,"useUTC":false,"colors":"#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5","outputs":1,"useDifferentColor":false,"className":"","x":350,"y":420,"wires":[[]]},{"id":"bb27ef41380ec1d2","type":"inject","z":"e351b1251dfbc2f7","name":"","props":,"repeat":"1","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":90,"y":420,"wires":[["7b9862186954c4b3"]]},{"id":"7b9862186954c4b3","type":"random","z":"e351b1251dfbc2f7","name":"","low":"0","high":"100","inte":"true","property":"payload","x":220,"y":400,"wires":[["e284b90164e648e6","ac116116c56e6c3c"]]},{"id":"e891f555bad51f01","type":"ui_gauge","z":"e351b1251dfbc2f7","name":"","group":"fcc4481a9e329266","order":2,"width":0,"height":0,"gtype":"gage","title":"gauge","label":"units","format":"","min":0,"max":"100","colors":"#00b500","#e6e600","#ca3838","seg1":"","seg2":"","diff":false,"className":"","x":350,"y":500,"wires":},{"id":"fa090cd1a0e97885","type":"ui_button","z":"e351b1251dfbc2f7","name":"","group":"fcc4481a9e329266","order":1,"width":0,"height":0,"passthru":false,"label":"Update","tooltip":"","color":"","bgcolor":"","className":"","icon":"","payload":"","payloadType":"str","topic":"topic","topicType":"msg","x":80,"y":500,"wires":[["bb4e945a2a8e681c"]]},{"id":"1c3a8aa84dfc85fe","type":"ui_chart","z":"e351b1251dfbc2f7","name":"","group":"fcc4481a9e329266","order":3,"width":0,"height":0,"label":"chart","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"60","cutout":0,"useOneColor":false,"useUTC":false,"colors":"#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5","outputs":1,"useDifferentColor":false,"className":"","x":350,"y":540,"wires":[[]]},{"id":"796f79538c15dd66","type":"inject","z":"e351b1251dfbc2f7","name":"","props":,"repeat":"1","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":90,"y":540,"wires":[["bb4e945a2a8e681c"]]},{"id":"bb4e945a2a8e681c","type":"random","z":"e351b1251dfbc2f7","name":"","low":"0","high":"100","inte":"true","property":"payload","x":220,"y":520,"wires":[["e891f555bad51f01","1c3a8aa84dfc85fe"]]},{"id":"ba1ff527abfa5261","type":"ui_group","name":"Machine 1","tab":"39383a7a648193dd","order":1,"disp":true,"width":"6","collapse":false,"className":""},{"id":"f6052a3dccc77ea3","type":"ui_group","name":"Machine 2","tab":"39383a7a648193dd","order":2,"disp":true,"width":"6","collapse":false,"className":""},{"id":"1e4a72d62ed7564c","type":"ui_group","name":"Machine 3","tab":"39383a7a648193dd","order":3,"disp":true,"width":"6","collapse":false,"className":""},{"id":"fcc4481a9e329266","type":"ui_group","name":"Machine 4","tab":"39383a7a648193dd","order":4,"disp":true,"width":"6","collapse":false,"className":""},{"id":"39383a7a648193dd","type":"ui_tab","name":"Node-RED Tips","icon":"dashboard","disabled":false,"hidden":false} {% endrenderFlow %}

2. Add more than one series of data to a line chart

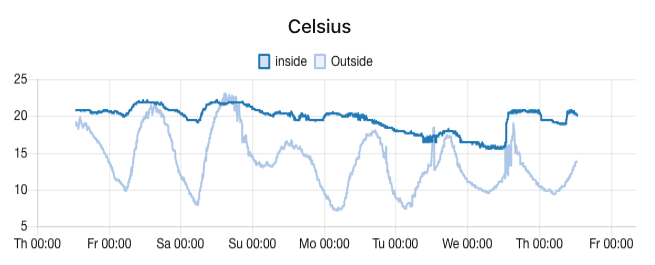

Being able to add more than one series of data to a single chart can make the data far more useful. One great way to use this is to compare the same data from different sensors. In this example I'm going to show the external and internal temperature at a location on the same chart.

To do this you need to give a different msg.topic to each series, you can add that using a change node before passing the data to the chart.

If you'd like to view this chart on your own Node-RED, you can import the flow below.

{% renderFlow %} {"id":"3eb08d4843164efc","type":"ui_chart","z":"58569b35dacd54f3","name":"","group":"41e847ff22249c0e","order":3,"width":"12","height":"5","label":"Celsius","chartType":"line","legend":"true","xformat":"dd HH:mm","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":1,"removeOlderPoints":"","removeOlderUnit":"604800","cutout":0,"useOneColor":false,"useUTC":false,"colors":"#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5","outputs":1,"useDifferentColor":false,"className":"","x":280,"y":180,"wires":[[]]},{"id":"c4a13220356f76d3","type":"inject","z":"58569b35dacd54f3","name":"","props":{"p":"payload"},"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{"series":"inside","outside","data":[[{"x":1685015544647,"y":20.8},{"x":1685015844687,"y":20.8},{"x":1685016144791,"y":20.8},{"x":1685016444933,"y":20.8},{"x":1685016745032,"y":20.8},{"x":1685017045123,"y":20.8},{"x":1685017345223,"y":20.8},{"x":1685017645339,"y":20.8},{"x":1685017945424,"y":20.8},{"x":1685018245500,"y":20.8},{"x":1685018545670,"y":20.8},{"x":1685018860580,"y":20.8},{"x":1685019160814,"y":20.8},{"x":1685019460832,"y":20.8},{"x":1685019760943,"y":20.8},{"x":1685020061037,"y":20.8},{"x":1685020361249,"y":20.8},{"x":1685020661264,"y":20.8},{"x":1685020961381,"y":20.8},{"x":1685021261473,"y":20.8},{"x":1685021561721,"y":20.8},{"x":1685021876580,"y":20.6},{"x":1685022176696,"y":20.7},{"x":1685022476852,"y":20.8},{"x":1685022776957,"y":20.8},{"x":1685023077032,"y":20.8},{"x":1685023377120,"y":20.8},{"x":1685023677234,"y":20.8},{"x":1685023977339,"y":20.8},{"x":1685024277455,"y":20.8},{"x":1685024577576,"y":20.8},{"x":1685024892578,"y":20.8},{"x":1685025192616,"y":20.8},{"x":1685025492757,"y":20.8},{"x":1685025792847,"y":20.7},{"x":1685026092949,"y":20.8},{"x":1685026393052,"y":20.8},{"x":1685026693174,"y":20.8},{"x":1685026993234,"y":20.8},{"x":1685027293387,"y":20.8},{"x":1685027593514,"y":20.8},{"x":1685027908550,"y":20.8},{"x":1685028208624,"y":20.8},{"x":1685028508708,"y":20.8},{"x":1685028808828,"y":20.8},{"x":1685029108909,"y":20.8},{"x":1685029409026,"y":20.8},{"x":1685029709096,"y":20.8},{"x":1685030009262,"y":20.8},{"x":1685030309361,"y":20.8},{"x":1685030609541,"y":20.8},{"x":1685030924565,"y":20.8},{"x":1685031239588,"y":20.8},{"x":1685031539702,"y":20.8},{"x":1685031839784,"y":20.8},{"x":1685032139922,"y":20.8},{"x":1685032440027,"y":20.8},{"x":1685032740134,"y":20.6},{"x":1685033040252,"y":20.7},{"x":1685033340317,"y":20.5},{"x":1685033640450,"y":20.5},{"x":1685033940507,"y":20.6},{"x":1685034240592,"y":20.5},{"x":1685034540633,"y":20.4},{"x":1685034840784,"y":20.4},{"x":1685035140888,"y":20.5},{"x":1685035441026,"y":20.4},{"x":1685035741107,"y":20.5},{"x":1685036041205,"y":20.5},{"x":1685036341328,"y":20.5},{"x":1685036641457,"y":20.5},{"x":1685036941583,"y":20.4},{"x":1685037256578,"y":20.5},{"x":1685037556715,"y":20.5},{"x":1685037856773,"y":20.5},{"x":1685038156902,"y":20.5},{"x":1685038457023,"y":20.5},{"x":1685038757090,"y":20.5},{"x":1685039057219,"y":20.5},{"x":1685039357278,"y":20.5},{"x":1685039657449,"y":20.5},{"x":1685039957553,"y":20.5},{"x":1685040257570,"y":20.5},{"x":1685040557615,"y":20.5},{"x":1685040857735,"y":20.4},{"x":1685041157843,"y":20.4},{"x":1685041457971,"y":20.5},{"x":1685041758072,"y":20.5},{"x":1685042058154,"y":20.5},{"x":1685042358273,"y":20.5},{"x":1685042658392,"y":20.5},{"x":1685042958486,"y":20.6},{"x":1685043258518,"y":20.6},{"x":1685043558568,"y":20.6},{"x":1685043858688,"y":20.5},{"x":1685044158769,"y":20.5},{"x":1685044458908,"y":20.5},{"x":1685044758984,"y":20.5},{"x":1685045059095,"y":20.5},{"x":1685045359169,"y":20.5},{"x":1685045659320,"y":20.5},{"x":1685045959367,"y":20.5},{"x":1685046259469,"y":20.7},{"x":1685046559497,"y":20.6},{"x":1685046859589,"y":20.5},{"x":1685047159647,"y":20.6},{"x":1685047459714,"y":20.6},{"x":1685047759793,"y":20.7},{"x":1685048059921,"y":20.7},{"x":1685048359994,"y":20.6},{"x":1685048659997,"y":20.7},{"x":1685048960056,"y":20.7},{"x":1685049260070,"y":20.8},{"x":1685049560116,"y":20.8},{"x":1685049860167,"y":20.8},{"x":1685050160212,"y":20.8},{"x":1685050460281,"y":20.8},{"x":1685050760368,"y":20.8},{"x":1685051060400,"y":20.7},{"x":1685051360435,"y":20.8},{"x":1685051660553,"y":20.8},{"x":1685051960585,"y":20.8},{"x":1685052260665,"y":20.8},{"x":1685052560675,"y":20.8},{"x":1685052860700,"y":20.7},{"x":1685053160749,"y":20.8},{"x":1685053460790,"y":20.8},{"x":1685053760855,"y":20.7},{"x":1685054060931,"y":20.7},{"x":1685054361019,"y":20.7},{"x":1685054661030,"y":20.7},{"x":1685054961121,"y":20.7},{"x":1685055261227,"y":20.7},{"x":1685055576250,"y":20.7},{"x":1685055891289,"y":20.5},{"x":1685056191290,"y":20.6},{"x":1685056491397,"y":20.7},{"x":1685056791444,"y":20.7},{"x":1685057091489,"y":20.7},{"x":1685057391516,"y":20.7},{"x":1685057691607,"y":20.7},{"x":1685057991660,"y":20.7},{"x":1685058291741,"y":20.6},{"x":1685058606760,"y":20.5},{"x":1685058906775,"y":20.5},{"x":1685059206866,"y":20.5},{"x":1685059506900,"y":20.5},{"x":1685059806979,"y":20.4},{"x":1685060107035,"y":20.5},{"x":1685060407099,"y":20.5},{"x":1685060707132,"y":20.4},{"x":1685061007199,"y":20.5},{"x":1685061307220,"y":20.4},{"x":1685061607228,"y":20.5},{"x":1685061907286,"y":20.6},{"x":1685062207289,"y":20.7},{"x":1685062507315,"y":20.6},{"x":1685062807355,"y":20.7},{"x":1685063107395,"y":20.7},{"x":1685063407413,"y":20.7},{"x":1685063707465,"y":20.7},{"x":1685064007492,"y":20.7},{"x":1685064307565,"y":20.7},{"x":1685064607587,"y":20.7},{"x":1685064907609,"y":20.7},{"x":1685065207618,"y":20.5},{"x":1685065507642,"y":20.4},{"x":1685065807670,"y":20.4},{"x":1685066107679,"y":20.4},{"x":1685066407758,"y":20.5},{"x":1685066707760,"y":20.3},{"x":1685067007798,"y":20.4},{"x":1685067307865,"y":20.4},{"x":1685067622903,"y":20.4},{"x":1685067937922,"y":20.4},{"x":1685068237945,"y":20.4},{"x":1685068537971,"y":20.3},{"x":1685068838009,"y":20.3},{"x":1685069138060,"y":20.2},{"x":1685069453065,"y":20.3},{"x":1685069753104,"y":20.3},{"x":1685070053108,"y":20.2},{"x":1685070353140,"y":20.3},{"x":1685070653170,"y":20.2},{"x":1685070953219,"y":20.2},{"x":1685071253232,"y":20.2},{"x":1685071553258,"y":20},{"x":1685071853260,"y":20},{"x":1685072153324,"y":20.2},{"x":1685072453329,"y":20.2},{"x":1685072753343,"y":19.9},{"x":1685073053359,"y":20},{"x":1685073353402,"y":19.9},{"x":1685073653411,"y":19.9},{"x":1685073953453,"y":20},{"x":1685074253462,"y":20},{"x":1685074553509,"y":20},{"x":1685074853529,"y":20},{"x":1685075153554,"y":20},{"x":1685075453556,"y":20},{"x":1685075753590,"y":20},{"x":1685076053642,"y":20.2},{"x":1685076368644,"y":20},{"x":1685076668676,"y":20.2},{"x":1685076968685,"y":20.3},{"x":1685077268752,"y":20.3},{"x":1685077583729,"y":20.3},{"x":1685077883800,"y":20.2},{"x":1685078198760,"y":20.2},{"x":1685078498762,"y":20.4},{"x":1685078798782,"y":20.4},{"x":1685079098837,"y":20.5},{"x":1685079398903,"y":20.5},{"x":1685079698965,"y":20.6},{"x":1685079999013,"y":20.7},{"x":1685080299091,"y":20.8},{"x":1685080599234,"y":20.8},{"x":1685080899276,"y":20.8},{"x":1685081199340,"y":20.8},{"x":1685081499403,"y":20.8},{"x":1685081799441,"y":20.8},{"x":1685082099467,"y":20.9},{"x":1685082399584,"y":20.8},{"x":1685082699624,"y":21},{"x":1685082999670,"y":21},{"x":1685083299724,"y":21.2},{"x":1685083599810,"y":21.2},{"x":1685083899884,"y":21.2},{"x":1685084199935,"y":21.2},{"x":1685084500001,"y":21.3},{"x":1685084800063,"y":21.4},{"x":1685085115072,"y":21.5},{"x":1685085415170,"y":21.5},{"x":1685085715226,"y":21.5},{"x":1685086015289,"y":21.5},{"x":1685086315365,"y":21.5},{"x":1685086615447,"y":21.5},{"x":1685086915501,"y":21.7},{"x":1685087215603,"y":21.7},{"x":1685087515642,"y":21.6},{"x":1685087815732,"y":21.6},{"x":1685088115759,"y":21.7},{"x":1685088415793,"y":21.9},{"x":1685088715840,"y":21.9},{"x":1685089015891,"y":21.9},{"x":1685089315950,"y":21.9},{"x":1685089616045,"y":21.9},{"x":1685089916094,"y":21.9},{"x":1685090216153,"y":21.9},{"x":1685090516202,"y":21.9},{"x":1685090816299,"y":21.9},{"x":1685091116304,"y":22},{"x":1685091416326,"y":22},{"x":1685091716409,"y":22},{"x":1685092016500,"y":22},{"x":1685092316555,"y":21.9},{"x":1685092616597,"y":21.9},{"x":1685092916687,"y":21.9},{"x":1685093216749,"y":21.9},{"x":1685093516770,"y":21.9},{"x":1685093816833,"y":21.8},{"x":1685094116862,"y":21.8},{"x":1685094416941,"y":21.9},{"x":1685094717014,"y":21.8},{"x":1685095017079,"y":21.8},{"x":1685095317146,"y":21.9},{"x":1685095617198,"y":21.9},{"x":1685095917267,"y":22},{"x":1685096217380,"y":22},{"x":1685096517436,"y":22.2},{"x":1685096817481,"y":22.1},{"x":1685097117519,"y":21.9},{"x":1685097417582,"y":21.9},{"x":1685097717607,"y":21.9},{"x":1685098017734,"y":21.9},{"x":1685098317791,"y":21.9},{"x":1685098617850,"y":21.9},{"x":1685098917939,"y":21.9},{"x":1685099218020,"y":21.9},{"x":1685099518088,"y":21.9},{"x":1685099818190,"y":21.9},{"x":1685100118269,"y":21.9},{"x":1685100418304,"y":21.9},{"x":1685100718355,"y":21.9},{"x":1685101018437,"y":22},{"x":1685101318544,"y":22.1},{"x":1685101618646,"y":22},{"x":1685101918720,"y":22},{"x":1685102218803,"y":22},{"x":1685102518914,"y":21.9},{"x":1685102818997,"y":21.9},{"x":1685103119093,"y":21.9},{"x":1685103419119,"y":21.9},{"x":1685103719183,"y":21.9},{"x":1685104019263,"y":21.9},{"x":1685104319361,"y":21.9},{"x":1685104619467,"y":21.9},{"x":1685104919565,"y":21.9},{"x":1685105219692,"y":21.9},{"x":1685105261657,"y":21.9},{"x":1685105275726,"y":21.9},{"x":1685105316848,"y":21.9},{"x":1685105388676,"y":21.9},{"x":1685105475001,"y":21.9},{"x":1685105501466,"y":21.9},{"x":1685105576628,"y":21.9},{"x":1685105627162,"y":21.9},{"x":1685105653330,"y":21.9},{"x":1685105684112,"y":21.9},{"x":1685105722222,"y":21.9},{"x":1685105769629,"y":21.9},{"x":1685105825666,"y":21.9},{"x":1685105889137,"y":21.9},{"x":1685105910507,"y":21.9},{"x":1685105970749,"y":21.9},{"x":1685106270828,"y":21.9},{"x":1685106570844,"y":21.9},{"x":1685106870845,"y":21.9},{"x":1685107170872,"y":21.9},{"x":1685107485846,"y":21.9},{"x":1685107785884,"y":21.9},{"x":1685108100859,"y":21.9},{"x":1685108400859,"y":21.9},{"x":1685108700881,"y":21.9},{"x":1685109000885,"y":21.9},{"x":1685109300898,"y":21.9},{"x":1685109615915,"y":21.8},{"x":1685109930873,"y":21.9},{"x":1685110230928,"y":21.9},{"x":1685110545931,"y":21.7},{"x":1685110845948,"y":21.7},{"x":1685111145989,"y":21.7},{"x":1685111460988,"y":21.7},{"x":1685111761062,"y":21.8},{"x":1685112061067,"y":21.6},{"x":1685112361107,"y":21.7},{"x":1685112661141,"y":21.7},{"x":1685112961145,"y":21.8},{"x":1685113261191,"y":21.8},{"x":1685113561195,"y":21.8},{"x":1685113861234,"y":21.8},{"x":1685114161272,"y":21.8},{"x":1685114461288,"y":21.7},{"x":1685114761326,"y":21.7},{"x":1685115061359,"y":21.7},{"x":1685115361389,"y":21.7},{"x":1685115661413,"y":21.6},{"x":1685115961522,"y":21.7},{"x":1685116276440,"y":21.7},{"x":1685116576471,"y":21.5},{"x":1685116876500,"y":21.5},{"x":1685117176511,"y":21.5},{"x":1685117476538,"y":21.6},{"x":1685117776599,"y":21.6},{"x":1685118091580,"y":21.8},{"x":1685118391620,"y":21.6},{"x":1685118691646,"y":21.7},{"x":1685118991656,"y":21.7},{"x":1685119291661,"y":21.5},{"x":1685119591684,"y":21.5},{"x":1685119891711,"y":21.5},{"x":1685120191732,"y":21.5},{"x":1685120491763,"y":21.5},{"x":1685120791797,"y":21.4},{"x":1685121091832,"y":21.2},{"x":1685121406802,"y":21.2},{"x":1685121706853,"y":21.1},{"x":1685122021885,"y":21.1},{"x":1685122336872,"y":21.2},{"x":1685122636878,"y":21.2},{"x":1685122936903,"y":21.1},{"x":1685123236933,"y":21},{"x":1685123536988,"y":21},{"x":1685123837007,"y":21.1},{"x":1685124137007,"y":21},{"x":1685124437098,"y":21},{"x":1685124737193,"y":21},{"x":1685125037270,"y":21},{"x":1685125337370,"y":20.9},{"x":1685125637493,"y":20.9},{"x":1685125937530,"y":21},{"x":1685126237627,"y":20.9},{"x":1685126537712,"y":20.8},{"x":1685126837733,"y":20.8},{"x":1685127137746,"y":20.8},{"x":1685127437870,"y":20.8},{"x":1685127737940,"y":20.8},{"x":1685128038026,"y":20.8},{"x":1685128338109,"y":20.8},{"x":1685128638215,"y":20.8},{"x":1685128938321,"y":20.8},{"x":1685129238409,"y":20.8},{"x":1685129538484,"y":20.8},{"x":1685129838514,"y":20.8},{"x":1685130138614,"y":20.8},{"x":1685130438644,"y":20.8},{"x":1685130738716,"y":20.8},{"x":1685131038856,"y":20.8},{"x":1685131338912,"y":20.8},{"x":1685131639028,"y":20.8},{"x":1685131939140,"y":20.8},{"x":1685132239222,"y":20.8},{"x":1685132539344,"y":20.8},{"x":1685132839390,"y":20.8},{"x":1685133154381,"y":20.8},{"x":1685133454402,"y":20.8},{"x":1685133754494,"y":20.8},{"x":1685134054557,"y":20.8},{"x":1685134354644,"y":20.8},{"x":1685134654753,"y":20.8},{"x":1685134954810,"y":20.8},{"x":1685135254894,"y":20.7},{"x":1685135554961,"y":20.8},{"x":1685135854990,"y":20.8},{"x":1685136155013,"y":20.8},{"x":1685136455070,"y":20.8},{"x":1685136755172,"y":20.8},{"x":1685137055242,"y":20.8},{"x":1685137355339,"y":20.8},{"x":1685137655440,"y":20.7},{"x":1685137955504,"y":20.7},{"x":1685138255592,"y":20.6},{"x":1685138555675,"y":20.6},{"x":1685138855742,"y":20.6},{"x":1685139155750,"y":20.6},{"x":1685139455841,"y":20.5},{"x":1685139755904,"y":20.6},{"x":1685140055961,"y":20.5},{"x":1685140356100,"y":20.6},{"x":1685140656187,"y":20.5},{"x":1685140956268,"y":20.4},{"x":1685141256384,"y":20.4},{"x":1685141556467,"y":20.4},{"x":1685141856547,"y":20.4},{"x":1685142156630,"y":20.3},{"x":1685142456678,"y":20.2},{"x":1685142756713,"y":20.3},{"x":1685143056833,"y":20.3},{"x":1685143356922,"y":20.3},{"x":1685143657019,"y":20.3},{"x":1685143957116,"y":20.2},{"x":1685144257203,"y":20.2},{"x":1685144557262,"y":20.1},{"x":1685144857393,"y":20.2},{"x":1685145157511,"y":20.2},{"x":1685145457515,"y":20.2},{"x":1685145757583,"y":20},{"x":1685146057687,"y":20},{"x":1685146357780,"y":20.1},{"x":1685146657878,"y":19.9},{"x":1685146957969,"y":19.9},{"x":1685147258066,"y":20},{"x":1685147558163,"y":20},{"x":1685147858255,"y":19.9},{"x":1685148158303,"y":19.9},{"x":1685148458377,"y":19.9},{"x":1685148758392,"y":19.9},{"x":1685149058441,"y":19.9},{"x":1685149358550,"y":19.9},{"x":1685149658652,"y":19.5},{"x":1685149958735,"y":19.5},{"x":1685150258816,"y":19.5},{"x":1685150558892,"y":19.5},{"x":1685150858996,"y":19.5},{"x":1685151159109,"y":19.5},{"x":1685151459166,"y":19.5},{"x":1685151759230,"y":19.5},{"x":1685152059291,"y":19.5},{"x":1685152359350,"y":19.5},{"x":1685152659430,"y":19.5},{"x":1685152959526,"y":19.5},{"x":1685153259622,"y":19.5},{"x":1685153559728,"y":19.5},{"x":1685153859883,"y":19.5},{"x":1685154159899,"y":19.5},{"x":1685154459974,"y":19.5},{"x":1685154760016,"y":19.5},{"x":1685155060096,"y":19.5},{"x":1685155360142,"y":19.5},{"x":1685155660284,"y":19.5},{"x":1685155960372,"y":19.5},{"x":1685156260469,"y":19.5},{"x":1685156560559,"y":19.5},{"x":1685156860664,"y":19.5},{"x":1685157160732,"y":19.5},{"x":1685157460827,"y":19.5},{"x":1685157760925,"y":19.5},{"x":1685158061041,"y":19.4},{"x":1685158361093,"y":19.4},{"x":1685158661174,"y":19.4},{"x":1685158961238,"y":19.4},{"x":1685159261356,"y":19.4},{"x":1685159561460,"y":19.4},{"x":1685159861591,"y":19.4},{"x":1685160161622,"y":19.5},{"x":1685160461727,"y":19.4},{"x":1685160761798,"y":19.3},{"x":1685161061899,"y":19.3},{"x":1685161361960,"y":19.3},{"x":1685161662030,"y":19.3},{"x":1685161962083,"y":19.2},{"x":1685162262205,"y":19.2},{"x":1685162562329,"y":19.2},{"x":1685162862420,"y":19.2},{"x":1685163162514,"y":19.3},{"x":1685163462630,"y":19.4},{"x":1685163762689,"y":19.5},{"x":1685164062785,"y":19.5},{"x":1685164362862,"y":19.5},{"x":1685164662929,"y":19.5},{"x":1685164962989,"y":19.5},{"x":1685165263080,"y":19.5},{"x":1685165563213,"y":19.5},{"x":1685165863284,"y":19.5},{"x":1685166163398,"y":19.7},{"x":1685166463432,"y":20},{"x":1685166763562,"y":20},{"x":1685167063657,"y":20.3},{"x":1685167363752,"y":20.3},{"x":1685167663818,"y":20.2},{"x":1685167963868,"y":20.4},{"x":1685168263959,"y":20.5},{"x":1685168564052,"y":20.7},{"x":1685168864152,"y":20.8},{"x":1685169164297,"y":20.8},{"x":1685169464371,"y":20.8},{"x":1685169764428,"y":20.9},{"x":1685170064553,"y":21},{"x":1685170364630,"y":20.8},{"x":1685170664689,"y":20.8},{"x":1685170964744,"y":20.9},{"x":1685171264839,"y":21},{"x":1685171564944,"y":21},{"x":1685171865046,"y":21.1},{"x":1685172165136,"y":21.1},{"x":1685172465216,"y":21.2},{"x":1685172765270,"y":21.5},{"x":1685173065378,"y":21.5},{"x":1685173365491,"y":21.5},{"x":1685173665574,"y":21.5},{"x":1685173965634,"y":21.5},{"x":1685174265651,"y":21.5},{"x":1685174565770,"y":21.5},{"x":1685174865842,"y":21.5},{"x":1685175165962,"y":21.5},{"x":1685175466056,"y":21.5},{"x":1685175766151,"y":21.6},{"x":1685176066247,"y":21.7},{"x":1685176366347,"y":21.6},{"x":1685176666421,"y":21.6},{"x":1685176966481,"y":21.7},{"x":1685177266535,"y":21.7},{"x":1685177566618,"y":21.7},{"x":1685177866715,"y":21.8},{"x":1685178166786,"y":21.7},{"x":1685178466868,"y":21.7},{"x":1685178766964,"y":21.8},{"x":1685179067013,"y":21.9},{"x":1685179367161,"y":21.9},{"x":1685179667226,"y":21.9},{"x":1685179967298,"y":21.9},{"x":1685180267304,"y":21.9},{"x":1685180567400,"y":21.9},{"x":1685180867474,"y":21.9},{"x":1685181167605,"y":21.9},{"x":1685181467661,"y":21.9},{"x":1685181767781,"y":21.9},{"x":1685182067847,"y":21.9},{"x":1685182367916,"y":21.9},{"x":1685182668010,"y":21.9},{"x":1685182968067,"y":21.9},{"x":1685183268142,"y":21.9},{"x":1685183568218,"y":21.9},{"x":1685183868264,"y":21.9},{"x":1685184168356,"y":22},{"x":1685184468449,"y":22},{"x":1685184768557,"y":22},{"x":1685185068624,"y":22.2},{"x":1685185368711,"y":22.1},{"x":1685185668784,"y":22.1},{"x":1685185968847,"y":22},{"x":1685186268953,"y":21.9},{"x":1685186568982,"y":21.9},{"x":1685186868996,"y":21.9},{"x":1685187169094,"y":21.9},{"x":1685187469146,"y":21.9},{"x":1685187769224,"y":21.9},{"x":1685188069250,"y":21.9},{"x":1685188369327,"y":21.9},{"x":1685188669411,"y":21.7},{"x":1685188969475,"y":21.7},{"x":1685189269500,"y":21.5},{"x":1685189569548,"y":21.5},{"x":1685189869583,"y":21.6},{"x":1685190169645,"y":21.7},{"x":1685190469717,"y":21.7},{"x":1685190769801,"y":21.7},{"x":1685191069848,"y":21.7},{"x":1685191369885,"y":21.7},{"x":1685191669980,"y":21.7},{"x":1685191970014,"y":21.7},{"x":1685192270055,"y":21.6},{"x":1685192570106,"y":21.7},{"x":1685192870150,"y":21.7},{"x":1685193170235,"y":21.6},{"x":1685193470249,"y":21.5},{"x":1685193770302,"y":21.5},{"x":1685194070311,"y":21.6},{"x":1685194370328,"y":21.7},{"x":1685194670393,"y":21.7},{"x":1685194985377,"y":21.7},{"x":1685195285440,"y":21.7},{"x":1685195585471,"y":21.7},{"x":1685195885473,"y":21.7},{"x":1685196185514,"y":21.6},{"x":1685196485562,"y":21.7},{"x":1685196800615,"y":21.7},{"x":1685197115572,"y":21.7},{"x":1685197415601,"y":21.7},{"x":1685197715640,"y":21.7},{"x":1685198015652,"y":21.7},{"x":1685198315706,"y":21.7},{"x":1685198615725,"y":21.7},{"x":1685198915775,"y":21.8},{"x":1685199215786,"y":21.8},{"x":1685199515831,"y":21.9},{"x":1685199815856,"y":21.8},{"x":1685200115858,"y":21.9},{"x":1685200415875,"y":21.8},{"x":1685200715913,"y":21.8},{"x":1685201015918,"y":21.8},{"x":1685201315964,"y":21.9},{"x":1685201616032,"y":21.9},{"x":1685201916044,"y":21.9},{"x":1685202231051,"y":21.9},{"x":1685202531062,"y":21.9},{"x":1685202831089,"y":21.8},{"x":1685203131095,"y":21.8},{"x":1685203431195,"y":21.8},{"x":1685203746138,"y":21.8},{"x":1685204046168,"y":21.8},{"x":1685204346182,"y":21.7},{"x":1685204646203,"y":21.8},{"x":1685204946241,"y":21.9},{"x":1685205246243,"y":21.9},{"x":1685205546262,"y":21.9},{"x":1685205846296,"y":21.9},{"x":1685206146312,"y":21.9},{"x":1685206446335,"y":21.9},{"x":1685206746375,"y":21.9},{"x":1685207046395,"y":21.9},{"x":1685207346549,"y":21.9},{"x":1685207661544,"y":21.9},{"x":1685207961647,"y":21.9},{"x":1685208261700,"y":21.9},{"x":1685208561766,"y":21.9},{"x":1685208861855,"y":21.9},{"x":1685209161943,"y":21.9},{"x":1685209462007,"y":21.9},{"x":1685209762097,"y":21.9},{"x":1685210077101,"y":21.9},{"x":1685210377152,"y":21.9},{"x":1685210677231,"y":21.9},{"x":1685210977296,"y":21.9},{"x":1685211277406,"y":21.9},{"x":1685211577537,"y":21.9},{"x":1685211877620,"y":21.9},{"x":1685212177660,"y":21.9},{"x":1685212477797,"y":21.9},{"x":1685212777837,"y":21.9},{"x":1685213077881,"y":21.9},{"x":1685213377932,"y":21.9},{"x":1685213677997,"y":21.9},{"x":1685213978205,"y":21.9},{"x":1685214293200,"y":21.9},{"x":1685214593270,"y":21.9},{"x":1685214893375,"y":21.9},{"x":1685215193482,"y":21.9},{"x":1685215493529,"y":21.8},{"x":1685215793531,"y":21.9},{"x":1685216093643,"y":21.9},{"x":1685216393738,"y":22},{"x":1685216693784,"y":21.9},{"x":1685216993880,"y":21.9},{"x":1685217293962,"y":21.7},{"x":1685217594100,"y":21.7},{"x":1685217894151,"y":21.7},{"x":1685218194256,"y":21.6},{"x":1685218494376,"y":21.5},{"x":1685218794467,"y":21.5},{"x":1685219094477,"y":21.5},{"x":1685219394675,"y":21.5},{"x":1685219709688,"y":21.5},{"x":1685220009789,"y":21.5},{"x":1685220309889,"y":21.5},{"x":1685220609986,"y":21.4},{"x":1685220910080,"y":21.5},{"x":1685221210236,"y":21.5},{"x":1685221510267,"y":21.5},{"x":1685221810331,"y":21.5},{"x":1685222110381,"y":21.4},{"x":1685222410481,"y":21.4},{"x":1685222710598,"y":21.3},{"x":1685223010661,"y":21.5},{"x":1685223310759,"y":21.5},{"x":1685223610881,"y":21.5},{"x":1685223911009,"y":21.5},{"x":1685224211106,"y":21.5},{"x":1685224511191,"y":21.5},{"x":1685224811272,"y":21.4},{"x":1685225111309,"y":21.4},{"x":1685225411398,"y":21.3},{"x":1685225711438,"y":21.2},{"x":1685226011552,"y":21.2},{"x":1685226311659,"y":21.2},{"x":1685226611773,"y":21.2},{"x":1685226911876,"y":21.2},{"x":1685227211995,"y":21.2},{"x":1685227512070,"y":21.2},{"x":1685227812175,"y":21.2},{"x":1685228112250,"y":21.2},{"x":1685228412314,"y":21},{"x":1685228712352,"y":21},{"x":1685229012470,"y":21},{"x":1685229312587,"y":21},{"x":1685229612662,"y":21.1},{"x":1685229912736,"y":21},{"x":1685230212847,"y":20.9},{"x":1685230512904,"y":21},{"x":1685230813034,"y":21},{"x":1685231113081,"y":21},{"x":1685231413122,"y":20.8},{"x":1685231713183,"y":20.8},{"x":1685232013342,"y":20.8},{"x":1685232328321,"y":20.8},{"x":1685232628419,"y":20.8},{"x":1685232928528,"y":20.8},{"x":1685233228604,"y":20.8},{"x":1685233528687,"y":20.8},{"x":1685233828743,"y":20.8},{"x":1685234128809,"y":20.8},{"x":1685234428883,"y":20.8},{"x":1685234728963,"y":20.8},{"x":1685235028977,"y":20.8},{"x":1685235329064,"y":20.8},{"x":1685235629163,"y":20.8},{"x":1685235929251,"y":20.8},{"x":1685236229341,"y":20.8},{"x":1685236529423,"y":20.7},{"x":1685236829513,"y":20.7},{"x":1685237129612,"y":20.8},{"x":1685237429697,"y":20.7},{"x":1685237729771,"y":20.7},{"x":1685238029832,"y":20.5},{"x":1685238329902,"y":20.5},{"x":1685238629974,"y":20.5},{"x":1685238930096,"y":20.5},{"x":1685239230144,"y":20.6},{"x":1685239530225,"y":20.6},{"x":1685239830331,"y":20.6},{"x":1685240130366,"y":20.6},{"x":1685240430509,"y":20.5},{"x":1685240730597,"y":20.5},{"x":1685241030697,"y":20.4},{"x":1685241330716,"y":20.4},{"x":1685241630792,"y":20.4},{"x":1685241930839,"y":20.4},{"x":1685242230957,"y":20.4},{"x":1685242531061,"y":20.4},{"x":1685242831116,"y":20.4},{"x":1685243131245,"y":20.4},{"x":1685243431358,"y":20.4},{"x":1685243731422,"y":20.3},{"x":1685244031484,"y":20.3},{"x":1685244331554,"y":20.2},{"x":1685244631614,"y":20.3},{"x":1685244931700,"y":20.3},{"x":1685245231790,"y":20.3},{"x":1685245531908,"y":20.3},{"x":1685245832059,"y":20.3},{"x":1685246132107,"y":20.3},{"x":1685246432206,"y":20.3},{"x":1685246732334,"y":20.3},{"x":1685247032445,"y":20.3},{"x":1685247332472,"y":20.2},{"x":1685247632538,"y":20.2},{"x":1685247932668,"y":20.2},{"x":1685248232731,"y":20.2},{"x":1685248532806,"y":20.2},{"x":1685248832930,"y":20.2},{"x":1685249133015,"y":20.2},{"x":1685249433093,"y":20.2},{"x":1685249733189,"y":20.2},{"x":1685250033291,"y":20.1},{"x":1685250333378,"y":20},{"x":1685250633446,"y":20},{"x":1685250933493,"y":20},{"x":1685251233569,"y":20},{"x":1685251533627,"y":20},{"x":1685251833774,"y":20.1},{"x":1685252133852,"y":20.2},{"x":1685252433955,"y":20.2},{"x":1685252734091,"y":20.2},{"x":1685253034179,"y":20},{"x":1685253334257,"y":19.9},{"x":1685253634325,"y":20},{"x":1685253934367,"y":20.2},{"x":1685254234489,"y":20.2},{"x":1685254534587,"y":20.2},{"x":1685254834680,"y":20.2},{"x":1685255134805,"y":20.3},{"x":1685255434885,"y":20.3},{"x":1685255735002,"y":20.3},{"x":1685256035085,"y":20.5},{"x":1685256335179,"y":20.5},{"x":1685256635254,"y":20.3},{"x":1685256935309,"y":20.3},{"x":1685257235338,"y":20.3},{"x":1685257535440,"y":20.3},{"x":1685257835520,"y":20.4},{"x":1685258135635,"y":20.5},{"x":1685258435709,"y":20.5},{"x":1685258735790,"y":20.5},{"x":1685259035904,"y":20.5},{"x":1685259335965,"y":20.4},{"x":1685259636005,"y":20.4},{"x":1685259936052,"y":20.4},{"x":1685260236148,"y":20.5},{"x":1685260536249,"y":20.4},{"x":1685260836320,"y":20.5},{"x":1685261136489,"y":20.5},{"x":1685261436489,"y":20.6},{"x":1685261736607,"y":20.5},{"x":1685262036710,"y":20.5},{"x":1685262336806,"y":20.4},{"x":1685262636943,"y":20.4},{"x":1685262936991,"y":20.3},{"x":1685263237019,"y":20.3},{"x":1685263537113,"y":20.3},{"x":1685263837223,"y":20.3},{"x":1685264137303,"y":20.3},{"x":1685264437449,"y":20.4},{"x":1685264737520,"y":20.3},{"x":1685265037596,"y":20.4},{"x":1685265337653,"y":20.3},{"x":1685265637725,"y":20.3},{"x":1685265937773,"y":20.3},{"x":1685266237884,"y":20.3},{"x":1685266537917,"y":20.3},{"x":1685266837940,"y":20.3},{"x":1685267138006,"y":20.3},{"x":1685267438089,"y":20.3},{"x":1685267738177,"y":20.3},{"x":1685268038239,"y":20.4},{"x":1685268338288,"y":20.3},{"x":1685268638340,"y":20.4},{"x":1685268938413,"y":20.3},{"x":1685269238479,"y":20.4},{"x":1685269538567,"y":20.4},{"x":1685269838641,"y":20.4},{"x":1685270138681,"y":20.3},{"x":1685270438761,"y":20.3},{"x":1685270738813,"y":20.3},{"x":1685271038911,"y":20.3},{"x":1685271338993,"y":20},{"x":1685271638994,"y":20},{"x":1685271939107,"y":20.2},{"x":1685272239155,"y":20.3},{"x":1685272539230,"y":20.3},{"x":1685272839299,"y":20.3},{"x":1685273139339,"y":20.3},{"x":1685273439382,"y":20.2},{"x":1685273739450,"y":19.9},{"x":1685274039516,"y":19.9},{"x":1685274339570,"y":20.2},{"x":1685274639651,"y":20.3},{"x":1685274939715,"y":20.5},{"x":1685275239718,"y":20.5},{"x":1685275539821,"y":20.6},{"x":1685275839883,"y":20.5},{"x":1685276139936,"y":20.3},{"x":1685276439971,"y":20.3},{"x":1685276740019,"y":20.3},{"x":1685277040061,"y":20.2},{"x":1685277340154,"y":20},{"x":1685277640177,"y":19.9},{"x":1685277940231,"y":20},{"x":1685278240249,"y":20},{"x":1685278540299,"y":19.9},{"x":1685278840376,"y":19.9},{"x":1685279140399,"y":19.5},{"x":1685279440422,"y":19.7},{"x":1685279740489,"y":19.8},{"x":1685280040542,"y":19.8},{"x":1685280340547,"y":19.5},{"x":1685280640612,"y":19.5},{"x":1685280940692,"y":19.5},{"x":1685280995978,"y":19.5},{"x":1685281186232,"y":19.5},{"x":1685281372604,"y":19.5},{"x":1685281687601,"y":19.5},{"x":1685281710226,"y":19.5},{"x":1685281749591,"y":19.5},{"x":1685281762017,"y":19.5},{"x":1685281799605,"y":19.5},{"x":1685282023556,"y":19.5},{"x":1685282044430,"y":19.5},{"x":1685282166915,"y":19.5},{"x":1685282208131,"y":19.5},{"x":1685282217923,"y":19.5},{"x":1685282260379,"y":19.5},{"x":1685282339652,"y":19.5},{"x":1685282364558,"y":19.5},{"x":1685282412077,"y":19.5},{"x":1685282588188,"y":19.5},{"x":1685282614967,"y":19.5},{"x":1685282852605,"y":19.5},{"x":1685282960718,"y":19.5},{"x":1685282980565,"y":19.5},{"x":1685283037810,"y":19.5},{"x":1685283067001,"y":19.5},{"x":1685283122144,"y":19.5},{"x":1685283272482,"y":19.5},{"x":1685283343031,"y":19.5},{"x":1685283445211,"y":19.5},{"x":1685283473050,"y":19.5},{"x":1685283503945,"y":19.4},{"x":1685283559122,"y":19.5},{"x":1685283661335,"y":19.5},{"x":1685283679196,"y":19.5},{"x":1685283753141,"y":19.5},{"x":1685283789923,"y":19.4},{"x":1685283796674,"y":19.4},{"x":1685284111596,"y":19.5},{"x":1685284411624,"y":19.5},{"x":1685284726634,"y":20},{"x":1685285041633,"y":19.9},{"x":1685285341650,"y":19.6},{"x":1685285641691,"y":19.8},{"x":1685285941711,"y":20},{"x":1685286241759,"y":20},{"x":1685286541841,"y":19.7},{"x":1685286856821,"y":20},{"x":1685287156833,"y":20.3},{"x":1685287456865,"y":20.4},{"x":1685287756902,"y":20.3},{"x":1685288056933,"y":20.3},{"x":1685288357007,"y":20.3},{"x":1685288671988,"y":20.1},{"x":1685288972004,"y":20.2},{"x":1685289272052,"y":20},{"x":1685289572077,"y":20},{"x":1685289872089,"y":20},{"x":1685290172161,"y":19.9},{"x":1685290487147,"y":20},{"x":1685290787163,"y":20},{"x":1685291087218,"y":19.9},{"x":1685291387247,"y":19.9},{"x":1685291687274,"y":20},{"x":1685291987283,"y":20.2},{"x":1685292287334,"y":20},{"x":1685292587380,"y":19.9},{"x":1685292887389,"y":19.9},{"x":1685293187427,"y":19.8},{"x":1685293502456,"y":19.7},{"x":1685293817480,"y":19.5},{"x":1685294117492,"y":19.6},{"x":1685294417507,"y":19.9},{"x":1685294717548,"y":20},{"x":1685295017585,"y":19.9},{"x":1685295317622,"y":19.6},{"x":1685295617633,"y":20},{"x":1685295917642,"y":19.7},{"x":1685296217701,"y":19.9},{"x":1685296532704,"y":19.5},{"x":1685296832750,"y":19.5},{"x":1685297132754,"y":19.5},{"x":1685297432771,"y":19.5},{"x":1685297732796,"y":19.5},{"x":1685298032828,"y":19.5},{"x":1685298332882,"y":19.5},{"x":1685298647889,"y":19.5},{"x":1685298947921,"y":19.5},{"x":1685299247969,"y":19.5},{"x":1685299547997,"y":19.5},{"x":1685299848026,"y":19.5},{"x":1685300163050,"y":19.5},{"x":1685300463065,"y":19.5},{"x":1685300763075,"y":19.5},{"x":1685301063109,"y":19.5},{"x":1685301363164,"y":19.5},{"x":1685301678208,"y":19.5},{"x":1685301993216,"y":19.5},{"x":1685302293269,"y":19.5},{"x":1685302593314,"y":19.5},{"x":1685302908310,"y":19.5},{"x":1685303208329,"y":19.5},{"x":1685303508359,"y":19.5},{"x":1685303808369,"y":19.5},{"x":1685304108395,"y":19.5},{"x":1685304408424,"y":19.3},{"x":1685304708455,"y":19.4},{"x":1685305008461,"y":19.4},{"x":1685305308490,"y":19.4},{"x":1685305608530,"y":19.5},{"x":1685305908539,"y":19.5},{"x":1685306208562,"y":19.4},{"x":1685306508616,"y":19.5},{"x":1685306823616,"y":19.5},{"x":1685307123649,"y":19.5},{"x":1685307423661,"y":19.5},{"x":1685307723699,"y":19.5},{"x":1685308023733,"y":19.5},{"x":1685308323779,"y":19.5},{"x":1685308638772,"y":19.5},{"x":1685308938793,"y":19.5},{"x":1685309238818,"y":19.5},{"x":1685309538833,"y":19.5},{"x":1685309838872,"y":19.5},{"x":1685310138910,"y":19.5},{"x":1685310453907,"y":19.5},{"x":1685310768906,"y":19.5},{"x":1685311068915,"y":19.5},{"x":1685311368965,"y":19.5},{"x":1685311668966,"y":19.5},{"x":1685311968998,"y":19.5},{"x":1685312269016,"y":19.5},{"x":1685312569034,"y":19.5},{"x":1685312869061,"y":19.5},{"x":1685313169072,"y":19.5},{"x":1685313484093,"y":19.5},{"x":1685313784097,"y":19.6},{"x":1685314084113,"y":19.5},{"x":1685314384134,"y":19.7},{"x":1685314684165,"y":19.9},{"x":1685314984191,"y":19.9},{"x":1685315299157,"y":19.9},{"x":1685315599168,"y":20},{"x":1685315899192,"y":19.9},{"x":1685316199221,"y":20.1},{"x":1685316514243,"y":20},{"x":1685316814264,"y":20.2},{"x":1685317129218,"y":20.2},{"x":1685317444217,"y":20.2},{"x":1685317744298,"y":20.3},{"x":1685318059259,"y":20.3},{"x":1685318359275,"y":20.3},{"x":1685318659355,"y":20.3},{"x":1685318959404,"y":20.3},{"x":1685319259419,"y":20.2},{"x":1685319559443,"y":20.3},{"x":1685319859535,"y":20.3},{"x":1685320159597,"y":20.3},{"x":1685320459678,"y":20.3},{"x":1685320759851,"y":20.3},{"x":1685321074857,"y":20.2},{"x":1685321374890,"y":20.3},{"x":1685321674930,"y":20.3},{"x":1685321974980,"y":20.3},{"x":1685322274993,"y":20.3},{"x":1685322575024,"y":20.3},{"x":1685322875122,"y":20.3},{"x":1685323175196,"y":20.3},{"x":1685323475244,"y":20.3},{"x":1685323775309,"y":20.4},{"x":1685324075375,"y":20.3},{"x":1685324375402,"y":20.4},{"x":1685324675425,"y":20.5},{"x":1685324975485,"y":20.5},{"x":1685325275523,"y":20.5},{"x":1685325575582,"y":20.5},{"x":1685325875647,"y":20.5},{"x":1685326175713,"y":20.5},{"x":1685326475768,"y":20.4},{"x":1685326775825,"y":20.4},{"x":1685327075908,"y":20.4},{"x":1685327376002,"y":20.4},{"x":1685327676015,"y":20.4},{"x":1685327976059,"y":20.4},{"x":1685328276184,"y":20.4},{"x":1685328591156,"y":20.4},{"x":1685328891332,"y":20.4},{"x":1685329206306,"y":20.4},{"x":1685329506397,"y":20.4},{"x":1685329806440,"y":20.3},{"x":1685330106549,"y":20.3},{"x":1685330406587,"y":20.3},{"x":1685330706687,"y":20.2},{"x":1685331006741,"y":20.3},{"x":1685331306759,"y":20.3},{"x":1685331606822,"y":20.2},{"x":1685331906872,"y":20.2},{"x":1685332206974,"y":20.2},{"x":1685332507043,"y":20.3},{"x":1685332807216,"y":20.2},{"x":1685333122210,"y":20.2},{"x":1685333422298,"y":20.2},{"x":1685333722396,"y":20.2},{"x":1685334022464,"y":20.2},{"x":1685334322536,"y":20.2},{"x":1685334622591,"y":20.2},{"x":1685334922644,"y":20.2},{"x":1685335222714,"y":20.1},{"x":1685335522841,"y":20},{"x":1685335822919,"y":20},{"x":1685336122954,"y":20},{"x":1685336423087,"y":19.9},{"x":1685336723138,"y":20},{"x":1685337023185,"y":19.9},{"x":1685337323274,"y":19.9},{"x":1685337623330,"y":19.9},{"x":1685337923414,"y":20},{"x":1685338223520,"y":19.9},{"x":1685338523616,"y":20},{"x":1685338823724,"y":19.9},{"x":1685339123797,"y":20},{"x":1685339423870,"y":19.9},{"x":1685339723950,"y":19.9},{"x":1685340024030,"y":19.9},{"x":1685340324090,"y":20},{"x":1685340624115,"y":20},{"x":1685340924164,"y":20},{"x":1685341224265,"y":20},{"x":1685341524353,"y":20},{"x":1685341824453,"y":20},{"x":1685342124531,"y":20.2},{"x":1685342424622,"y":19.9},{"x":1685342724753,"y":20},{"x":1685343024799,"y":20.2},{"x":1685343324830,"y":20},{"x":1685343624890,"y":19.9},{"x":1685343924971,"y":20.2},{"x":1685344225070,"y":20.2},{"x":1685344525149,"y":20.3},{"x":1685344825216,"y":20.2},{"x":1685345125344,"y":20.2},{"x":1685345425362,"y":20.3},{"x":1685345725441,"y":20.3},{"x":1685346025536,"y":20.3},{"x":1685346325591,"y":20},{"x":1685346625679,"y":20.2},{"x":1685346925731,"y":20.2},{"x":1685347225748,"y":20.3},{"x":1685347525839,"y":20.3},{"x":1685347825931,"y":20.3},{"x":1685348126031,"y":20.3},{"x":1685348426089,"y":20.3},{"x":1685348726163,"y":20.3},{"x":1685349026225,"y":20.3},{"x":1685349326308,"y":20.3},{"x":1685349626392,"y":20},{"x":1685349926466,"y":20},{"x":1685350226553,"y":20.2},{"x":1685350526651,"y":19.9},{"x":1685350826811,"y":20},{"x":1685351141763,"y":19.9},{"x":1685351441827,"y":20.2},{"x":1685351741927,"y":20.2},{"x":1685352042064,"y":20.1},{"x":1685352342100,"y":20.3},{"x":1685352642170,"y":20},{"x":1685352942245,"y":19.9},{"x":1685353242314,"y":19.9},{"x":1685353542387,"y":20},{"x":1685353842461,"y":20},{"x":1685354142491,"y":20},{"x":1685354442557,"y":19.9},{"x":1685354742628,"y":20},{"x":1685355042729,"y":20.3},{"x":1685355342838,"y":20.2},{"x":1685355642921,"y":20.3},{"x":1685355942977,"y":20},{"x":1685356243149,"y":19.9},{"x":1685356558148,"y":19.5},{"x":1685356858211,"y":19.9},{"x":1685357158249,"y":20},{"x":1685357458282,"y":19.6},{"x":1685357758424,"y":20},{"x":1685358058471,"y":19.5},{"x":1685358358569,"y":19.5},{"x":1685358658635,"y":20},{"x":1685358958716,"y":20.1},{"x":1685359258767,"y":20},{"x":1685359558873,"y":19.9},{"x":1685359858954,"y":20.2},{"x":1685360159014,"y":20.2},{"x":1685360459077,"y":20},{"x":1685360759117,"y":19.9},{"x":1685361059194,"y":19.8},{"x":1685361359285,"y":20},{"x":1685361659377,"y":20},{"x":1685361959454,"y":20.1},{"x":1685362259508,"y":20.2},{"x":1685362559586,"y":19.9},{"x":1685362859674,"y":20},{"x":1685363159756,"y":20},{"x":1685363459810,"y":19.5},{"x":1685363759869,"y":19.6},{"x":1685364059953,"y":19.5},{"x":1685364360040,"y":19.9},{"x":1685364660157,"y":19.9},{"x":1685364960261,"y":19.9},{"x":1685365260272,"y":19.9},{"x":1685365560367,"y":20},{"x":1685365860483,"y":19.9},{"x":1685366160569,"y":19.9},{"x":1685366460633,"y":19.5},{"x":1685366760670,"y":19.5},{"x":1685367060781,"y":19.5},{"x":1685367360928,"y":19.5},{"x":1685367660996,"y":19.5},{"x":1685367961125,"y":19.5},{"x":1685368261267,"y":19.5},{"x":1685368561326,"y":19.5},{"x":1685368861443,"y":19.5},{"x":1685369161528,"y":19.5},{"x":1685369461571,"y":19.5},{"x":1685369761618,"y":19.5},{"x":1685370061811,"y":19.5},{"x":1685370361876,"y":19.5},{"x":1685370661975,"y":19.5},{"x":1685370962096,"y":19.5},{"x":1685371262161,"y":19.5},{"x":1685371562287,"y":19.5},{"x":1685371862386,"y":19.5},{"x":1685372162471,"y":19.5},{"x":1685372462563,"y":19.4},{"x":1685372762583,"y":19.2},{"x":1685373062692,"y":19.2},{"x":1685373362813,"y":19.1},{"x":1685373662925,"y":19.3},{"x":1685373963012,"y":19.2},{"x":1685374263073,"y":19.2},{"x":1685374563193,"y":19},{"x":1685374863306,"y":19.2},{"x":1685375163412,"y":19.3},{"x":1685375463446,"y":19.4},{"x":1685375763533,"y":19.4},{"x":1685376063611,"y":19.2},{"x":1685376363690,"y":19.1},{"x":1685376663795,"y":19},{"x":1685376963909,"y":19.2},{"x":1685377263998,"y":19.3},{"x":1685377564112,"y":19.1},{"x":1685377864184,"y":19.2},{"x":1685378164260,"y":19.1},{"x":1685378464309,"y":19},{"x":1685378764426,"y":19},{"x":1685379064528,"y":19},{"x":1685379364568,"y":19.2},{"x":1685379664627,"y":19.1},{"x":1685379964711,"y":19},{"x":1685380264778,"y":19.1},{"x":1685380564838,"y":19.2},{"x":1685380864899,"y":19},{"x":1685381164922,"y":19},{"x":1685381464995,"y":18.9},{"x":1685381765085,"y":18.9},{"x":1685382065145,"y":18.9},{"x":1685382365238,"y":18.9},{"x":1685382665304,"y":18.9},{"x":1685382965394,"y":19},{"x":1685383265458,"y":19},{"x":1685383565523,"y":18.9},{"x":1685383865573,"y":18.9},{"x":1685384165635,"y":18.7},{"x":1685384465670,"y":18.7},{"x":1685384765740,"y":18.7},{"x":1685385065812,"y":18.9},{"x":1685385365909,"y":18.8},{"x":1685385665940,"y":18.7},{"x":1685385966015,"y":18.9},{"x":1685386266095,"y":18.9},{"x":1685386566159,"y":18.8},{"x":1685386866204,"y":18.5},{"x":1685387166270,"y":18.5},{"x":1685387466325,"y":18.7},{"x":1685387766371,"y":18.5},{"x":1685388066417,"y":18.7},{"x":1685388366441,"y":18.7},{"x":1685388666495,"y":18.7},{"x":1685388966561,"y":18.4},{"x":1685389266600,"y":18.4},{"x":1685389566607,"y":18.4},{"x":1685389866660,"y":18.4},{"x":1685390166677,"y":18.5},{"x":1685390466746,"y":18.5},{"x":1685390781720,"y":18.6},{"x":1685391081770,"y":18.6},{"x":1685391381808,"y":18.4},{"x":1685391681836,"y":18.4},{"x":1685391981922,"y":18.4},{"x":1685392281964,"y":18.4},{"x":1685392582032,"y":18.4},{"x":1685392897029,"y":18.4},{"x":1685393197037,"y":18.4},{"x":1685393497068,"y":18.4},{"x":1685393797107,"y":18.4},{"x":1685394097146,"y":18.4},{"x":1685394397195,"y":18.4},{"x":1685394697240,"y":18.4},{"x":1685394997269,"y":18.4},{"x":1685395297315,"y":18.4},{"x":1685395597344,"y":18.4},{"x":1685395897378,"y":18.4},{"x":1685396197391,"y":18.4},{"x":1685396497411,"y":18.4},{"x":1685396797418,"y":18.3},{"x":1685397097514,"y":18.4},{"x":1685397397526,"y":18.2},{"x":1685397697553,"y":18.1},{"x":1685397997603,"y":18.1},{"x":1685398297622,"y":18.1},{"x":1685398597700,"y":18.1},{"x":1685398897737,"y":18.2},{"x":1685399212765,"y":18.2},{"x":1685399527768,"y":18},{"x":1685399827776,"y":18.1},{"x":1685400127841,"y":17.9},{"x":1685400442841,"y":18},{"x":1685400742935,"y":17.9},{"x":1685401057950,"y":18},{"x":1685401357960,"y":18},{"x":1685401657984,"y":18.1},{"x":1685401957995,"y":18},{"x":1685402258067,"y":18.1},{"x":1685402573081,"y":18},{"x":1685402873096,"y":17.9},{"x":1685403173117,"y":17.9},{"x":1685403473129,"y":17.9},{"x":1685403773148,"y":17.9},{"x":1685404073175,"y":18},{"x":1685404373229,"y":17.9},{"x":1685404688249,"y":17.9},{"x":1685404988317,"y":17.9},{"x":1685405288409,"y":17.9},{"x":1685405588488,"y":17.9},{"x":1685405888522,"y":17.9},{"x":1685406188569,"y":17.9},{"x":1685406488623,"y":17.9},{"x":1685406788688,"y":17.9},{"x":1685407088721,"y":17.9},{"x":1685407388765,"y":17.9},{"x":1685407688838,"y":17.9},{"x":1685407988885,"y":17.9},{"x":1685408288915,"y":17.9},{"x":1685408588993,"y":17.9},{"x":1685408889074,"y":17.9},{"x":1685409189147,"y":17.9},{"x":1685409489206,"y":17.9},{"x":1685409789249,"y":17.9},{"x":1685410089310,"y":17.9},{"x":1685410389345,"y":17.9},{"x":1685410704354,"y":17.9},{"x":1685411004452,"y":17.9},{"x":1685411304516,"y":17.9},{"x":1685411604552,"y":17.9},{"x":1685411904625,"y":17.8},{"x":1685412204887,"y":17.8},{"x":1685412519762,"y":17.7},{"x":1685412819867,"y":17.7},{"x":1685413119886,"y":17.8},{"x":1685413419976,"y":17.7},{"x":1685413719986,"y":17.7},{"x":1685414020028,"y":17.7},{"x":1685414320085,"y":17.7},{"x":1685414620140,"y":17.7},{"x":1685414920229,"y":17.7},{"x":1685415220270,"y":17.7},{"x":1685415520407,"y":17.7},{"x":1685415820425,"y":17.7},{"x":1685416120509,"y":17.7},{"x":1685416420519,"y":17.7},{"x":1685416720605,"y":17.7},{"x":1685417020626,"y":17.7},{"x":1685417320672,"y":17.7},{"x":1685417620774,"y":17.7},{"x":1685417920843,"y":17.7},{"x":1685418220900,"y":17.8},{"x":1685418520971,"y":17.7},{"x":1685418821022,"y":17.7},{"x":1685419121073,"y":17.8},{"x":1685419421171,"y":17.9},{"x":1685419721181,"y":17.7},{"x":1685420021225,"y":17.7},{"x":1685420321304,"y":17.6},{"x":1685420621355,"y":17.7},{"x":1685420921447,"y":17.7},{"x":1685421221522,"y":17.7},{"x":1685421521582,"y":17.7},{"x":1685421821663,"y":17.7},{"x":1685422121736,"y":17.6},{"x":1685422421818,"y":17.7},{"x":1685422721865,"y":17.7},{"x":1685423021869,"y":17.6},{"x":1685423321956,"y":17.4},{"x":1685423622015,"y":17.5},{"x":1685423922080,"y":17.4},{"x":1685424222162,"y":17.5},{"x":1685424522203,"y":17.5},{"x":1685424822288,"y":17.5},{"x":1685425122362,"y":17.4},{"x":1685425422438,"y":17.4},{"x":1685425722513,"y":17.4},{"x":1685426022547,"y":17.4},{"x":1685426322620,"y":17.5},{"x":1685426622723,"y":17.5},{"x":1685426922744,"y":17.4},{"x":1685427222854,"y":17.4},{"x":1685427522913,"y":17.4},{"x":1685427823002,"y":17.4},{"x":1685428123104,"y":17.5},{"x":1685428423173,"y":17.5},{"x":1685428723329,"y":17.4},{"x":1685429038338,"y":17.4},{"x":1685429338390,"y":17.4},{"x":1685429638534,"y":17.4},{"x":1685429938550,"y":17.4},{"x":1685430238655,"y":17.4},{"x":1685430538750,"y":17.4},{"x":1685430838822,"y":17.3},{"x":1685431139008,"y":17.5},{"x":1685431439050,"y":17.5},{"x":1685431739109,"y":17.4},{"x":1685432039156,"y":17.5},{"x":1685432339204,"y":17.7},{"x":1685432639299,"y":17.3},{"x":1685432939394,"y":17.2},{"x":1685433239499,"y":17.2},{"x":1685433539575,"y":17.2},{"x":1685433839700,"y":17.2},{"x":1685434139771,"y":16.9},{"x":1685434439873,"y":16.7},{"x":1685434739965,"y":16.5},{"x":1685435040038,"y":16.5},{"x":1685435340054,"y":16.5},{"x":1685435640133,"y":16.5},{"x":1685435940205,"y":16.5},{"x":1685436240311,"y":16.8},{"x":1685436540423,"y":16.9},{"x":1685436840548,"y":17.1},{"x":1685437140665,"y":17},{"x":1685437440701,"y":16.8},{"x":1685437740799,"y":16.5},{"x":1685438040887,"y":16.5},{"x":1685438340964,"y":16.5},{"x":1685438641030,"y":17.2},{"x":1685438941063,"y":17.2},{"x":1685439241150,"y":17.2},{"x":1685439541265,"y":17},{"x":1685439841366,"y":17.2},{"x":1685440141451,"y":16.5},{"x":1685440441506,"y":16.5},{"x":1685440741607,"y":16.5},{"x":1685441041684,"y":16.5},{"x":1685441341786,"y":16.5},{"x":1685441641830,"y":16.5},{"x":1685441941863,"y":16.5},{"x":1685442241939,"y":17},{"x":1685442542010,"y":17.3},{"x":1685442842108,"y":17.2},{"x":1685443142199,"y":16.6},{"x":1685443442319,"y":17.2},{"x":1685443742376,"y":16.5},{"x":1685444042480,"y":16.8},{"x":1685444342574,"y":16.8},{"x":1685444642649,"y":16.5},{"x":1685444942748,"y":17.2},{"x":1685445242792,"y":17.1},{"x":1685445542799,"y":17.2},{"x":1685445842907,"y":17.3},{"x":1685446143003,"y":17.4},{"x":1685446443122,"y":17.4},{"x":1685446743194,"y":17.3},{"x":1685447043298,"y":17.2},{"x":1685447343341,"y":17.4},{"x":1685447643442,"y":17.2},{"x":1685447943557,"y":17.2},{"x":1685448243632,"y":17.3},{"x":1685448543708,"y":17.2},{"x":1685448843747,"y":17.1},{"x":1685449143768,"y":16.6},{"x":1685449443878,"y":16.5},{"x":1685449743965,"y":16.5},{"x":1685450044053,"y":16.5},{"x":1685450344178,"y":17.2},{"x":1685450644263,"y":17.3},{"x":1685450944279,"y":17.4},{"x":1685451244382,"y":17.2},{"x":1685451544448,"y":17.3},{"x":1685451844600,"y":17.3},{"x":1685452144626,"y":17.4},{"x":1685452444701,"y":17.4},{"x":1685452744749,"y":17.2},{"x":1685453044818,"y":17.4},{"x":1685453344909,"y":17.7},{"x":1685453645071,"y":17.6},{"x":1685453945113,"y":17.5},{"x":1685454245205,"y":17.6},{"x":1685454545276,"y":17.6},{"x":1685454845390,"y":17.7},{"x":1685455145455,"y":17.8},{"x":1685455445552,"y":17.7},{"x":1685455745631,"y":17.7},{"x":1685456045706,"y":17.7},{"x":1685456345813,"y":17.6},{"x":1685456645826,"y":17.7},{"x":1685456945928,"y":17.7},{"x":1685457246034,"y":17.4},{"x":1685457546104,"y":17.4},{"x":1685457846188,"y":17.6},{"x":1685458146263,"y":17.9},{"x":1685458446341,"y":17.9},{"x":1685458746470,"y":17.9},{"x":1685459046554,"y":17.8},{"x":1685459346643,"y":17.7},{"x":1685459646708,"y":17.9},{"x":1685459946734,"y":18},{"x":1685460246833,"y":17.9},{"x":1685460546913,"y":17.9},{"x":1685460847002,"y":17.9},{"x":1685461147079,"y":17.9},{"x":1685461447115,"y":17.9},{"x":1685461747181,"y":17.9},{"x":1685462047303,"y":17.9},{"x":1685462347360,"y":17.9},{"x":1685462647457,"y":17.9},{"x":1685462947533,"y":17.9},{"x":1685463247622,"y":17.9},{"x":1685463437946,"y":17.9},{"x":1685463752894,"y":17.9},{"x":1685464067891,"y":17.9},{"x":1685464367932,"y":17.9},{"x":1685464668016,"y":18.2},{"x":1685464968034,"y":18.2},{"x":1685465268109,"y":17.9},{"x":1685465568127,"y":17.9},{"x":1685465868179,"y":18},{"x":1685466168200,"y":18},{"x":1685466468292,"y":17.9},{"x":1685466783247,"y":17.9},{"x":1685467083281,"y":18},{"x":1685467383324,"y":18},{"x":1685467683356,"y":17.9},{"x":1685467983393,"y":17.9},{"x":1685468283508,"y":18},{"x":1685468598507,"y":17.9},{"x":1685468898532,"y":17.9},{"x":1685469198568,"y":17.9},{"x":1685469498602,"y":17.9},{"x":1685469798635,"y":17.9},{"x":1685470098653,"y":17.8},{"x":1685470398701,"y":17.8},{"x":1685470698741,"y":17.8},{"x":1685470998770,"y":17.7},{"x":1685471298800,"y":17.8},{"x":1685471598821,"y":17.9},{"x":1685471898877,"y":17.7},{"x":1685472198886,"y":17.7},{"x":1685472498957,"y":17.7},{"x":1685472798992,"y":17.7},{"x":1685473099049,"y":17.9},{"x":1685473414059,"y":17.9},{"x":1685473714086,"y":17.7},{"x":1685474014164,"y":17.6},{"x":1685474314238,"y":17.4},{"x":1685474629191,"y":17.5},{"x":1685474929212,"y":17.6},{"x":1685475229261,"y":17.7},{"x":1685475529275,"y":17.4},{"x":1685475829340,"y":17.4},{"x":1685476129417,"y":17.4},{"x":1685476429433,"y":17.4},{"x":1685476729449,"y":17.3},{"x":1685477029470,"y":17.2},{"x":1685477329512,"y":17.2},{"x":1685477629544,"y":17.3},{"x":1685477929562,"y":17.4},{"x":1685478229615,"y":17.3},{"x":1685478529641,"y":17},{"x":1685478829667,"y":16.5},{"x":1685479129749,"y":16.5},{"x":1685479429791,"y":16.5},{"x":1685479729807,"y":16.5},{"x":1685480029843,"y":16.5},{"x":1685480329850,"y":16.5},{"x":1685480629899,"y":16.7},{"x":1685480929954,"y":16.5},{"x":1685481244998,"y":16.5},{"x":1685481545012,"y":16.5},{"x":1685481845043,"y":16.5},{"x":1685482145093,"y":16.5},{"x":1685482445120,"y":16.5},{"x":1685482745153,"y":16.5},{"x":1685483045222,"y":16.5},{"x":1685483345235,"y":16.5},{"x":1685483645258,"y":16.5},{"x":1685483945299,"y":16.5},{"x":1685484245340,"y":16.5},{"x":1685484545382,"y":16.5},{"x":1685484845385,"y":16.5},{"x":1685485145425,"y":16.5},{"x":1685485445459,"y":16.5},{"x":1685485745479,"y":16.5},{"x":1685486045546,"y":16.5},{"x":1685486345575,"y":16.5},{"x":1685486645633,"y":16.5},{"x":1685486945725,"y":16.5},{"x":1685487260693,"y":16.5},{"x":1685487560707,"y":16.5},{"x":1685487860814,"y":16.5},{"x":1685488175808,"y":16.5},{"x":1685488475825,"y":16.5},{"x":1685488775853,"y":16.5},{"x":1685489075914,"y":16.5},{"x":1685489375930,"y":16.5},{"x":1685489675982,"y":16.5},{"x":1685489976039,"y":16.5},{"x":1685490276048,"y":16.5},{"x":1685490576126,"y":16.5},{"x":1685490876150,"y":16.5},{"x":1685491176154,"y":16.5},{"x":1685491476262,"y":16.5},{"x":1685491791218,"y":16.5},{"x":1685492091237,"y":16.5},{"x":1685492391276,"y":16.5},{"x":1685492691341,"y":16.5},{"x":1685492991352,"y":16.5},{"x":1685493291416,"y":16.5},{"x":1685493591464,"y":16.5},{"x":1685493891476,"y":16.2},{"x":1685494191553,"y":16.5},{"x":1685494491555,"y":16.5},{"x":1685494806655,"y":16.5},{"x":1685495121636,"y":16.5},{"x":1685495436647,"y":16.5},{"x":1685495736703,"y":16.5},{"x":1685496036726,"y":16.4},{"x":1685496336779,"y":16.5},{"x":1685496636854,"y":16.4},{"x":1685496951873,"y":16.4},{"x":1685497251911,"y":16.5},{"x":1685497566911,"y":16.5},{"x":1685497866915,"y":16.5},{"x":1685498166972,"y":16.2},{"x":1685498466989,"y":16.2},{"x":1685498767043,"y":16.4},{"x":1685499067095,"y":16.2},{"x":1685499367129,"y":16.5},{"x":1685499667180,"y":16.4},{"x":1685499967184,"y":16.5},{"x":1685500282215,"y":16.5},{"x":1685500582236,"y":16.5},{"x":1685500882309,"y":16.5},{"x":1685501197336,"y":16.4},{"x":1685501497371,"y":16.2},{"x":1685501797405,"y":16.3},{"x":1685502097446,"y":16.1},{"x":1685502397471,"y":16},{"x":1685502697518,"y":15.7},{"x":1685502997526,"y":16},{"x":1685503297549,"y":16},{"x":1685503597589,"y":16.2},{"x":1685503897624,"y":16.2},{"x":1685504197687,"y":16},{"x":1685504497728,"y":15.9},{"x":1685504797753,"y":16},{"x":1685505097809,"y":16},{"x":1685505397837,"y":16.2},{"x":1685505697885,"y":16.4},{"x":1685505997899,"y":16.3},{"x":1685506297916,"y":16.1},{"x":1685506597958,"y":16},{"x":1685506897987,"y":16},{"x":1685507198004,"y":15.8},{"x":1685507498078,"y":15.9},{"x":1685507798110,"y":16},{"x":1685508098131,"y":15.8},{"x":1685508398152,"y":16},{"x":1685508698194,"y":15.9},{"x":1685508998213,"y":15.8},{"x":1685509298220,"y":15.8},{"x":1685509598290,"y":15.9},{"x":1685509898323,"y":15.7},{"x":1685510198331,"y":15.7},{"x":1685510498370,"y":15.7},{"x":1685510798393,"y":15.5},{"x":1685511098454,"y":15.8},{"x":1685511398491,"y":15.7},{"x":1685511698520,"y":15.9},{"x":1685512013528,"y":15.9},{"x":1685512313605,"y":15.8},{"x":1685512628564,"y":15.7},{"x":1685512928630,"y":15.5},{"x":1685513228650,"y":15.5},{"x":1685513528663,"y":15.5},{"x":1685513828703,"y":15.6},{"x":1685514143711,"y":15.7},{"x":1685514443729,"y":15.7},{"x":1685514743749,"y":15.8},{"x":1685515043937,"y":15.7},{"x":1685515358896,"y":15.5},{"x":1685515658956,"y":15.6},{"x":1685515959007,"y":15.7},{"x":1685516259087,"y":15.6},{"x":1685516559112,"y":15.9},{"x":1685516859194,"y":16},{"x":1685517174175,"y":15.9},{"x":1685517474229,"y":15.8},{"x":1685517774323,"y":15.7},{"x":1685518074366,"y":15.7},{"x":1685518374438,"y":15.7},{"x":1685518674561,"y":15.9},{"x":1685518974586,"y":15.7},{"x":1685519274602,"y":16},{"x":1685519574700,"y":15.7},{"x":1685519889719,"y":15.8},{"x":1685520189753,"y":15.9},{"x":1685520489831,"y":15.8},{"x":1685520789861,"y":15.9},{"x":1685521089913,"y":16},{"x":1685521390016,"y":15.7},{"x":1685521690069,"y":15.5},{"x":1685521990135,"y":15.5},{"x":1685522290216,"y":15.5},{"x":1685522590301,"y":15.5},{"x":1685522905260,"y":15.7},{"x":1685523205311,"y":15.7},{"x":1685523505402,"y":15.7},{"x":1685523805456,"y":15.6},{"x":1685524105543,"y":15.9},{"x":1685524405592,"y":15.7},{"x":1685524705754,"y":15.5},{"x":1685525005757,"y":15.5},{"x":1685525305830,"y":15.7},{"x":1685525605894,"y":15.5},{"x":1685525905934,"y":15.7},{"x":1685526205944,"y":15.7},{"x":1685526505986,"y":15.5},{"x":1685526806078,"y":15.6},{"x":1685527106180,"y":15.8},{"x":1685527406287,"y":15.5},{"x":1685527706314,"y":15.6},{"x":1685528006417,"y":15.7},{"x":1685528306469,"y":15.8},{"x":1685528606541,"y":15.9},{"x":1685528906576,"y":15.7},{"x":1685529206598,"y":15.7},{"x":1685529506705,"y":15.7},{"x":1685529806799,"y":15.5},{"x":1685530106900,"y":15.7},{"x":1685530406997,"y":15.9},{"x":1685530707031,"y":15.9},{"x":1685531007135,"y":15.7},{"x":1685531307217,"y":15.9},{"x":1685531607277,"y":15.7},{"x":1685531907312,"y":15.9},{"x":1685532207333,"y":16},{"x":1685532507449,"y":15.9},{"x":1685532807538,"y":16},{"x":1685533107607,"y":15.9},{"x":1685533407716,"y":16.1},{"x":1685533707801,"y":16.4},{"x":1685534007891,"y":16.5},{"x":1685534307936,"y":17.9},{"x":1685534607976,"y":18.5},{"x":1685534908043,"y":19},{"x":1685535208090,"y":19.4},{"x":1685535508186,"y":19.5},{"x":1685535808331,"y":19.5},{"x":1685536108352,"y":19.5},{"x":1685536408438,"y":19.9},{"x":1685536708630,"y":20.2},{"x":1685537023666,"y":20.3},{"x":1685537323705,"y":20.5},{"x":1685537623753,"y":20.4},{"x":1685537923799,"y":20.4},{"x":1685538223965,"y":20.5},{"x":1685538538965,"y":20.4},{"x":1685538839060,"y":20.5},{"x":1685539139180,"y":20.5},{"x":1685539439233,"y":20.5},{"x":1685539739375,"y":20.4},{"x":1685540039424,"y":20.6},{"x":1685540339520,"y":20.4},{"x":1685540639601,"y":20.6},{"x":1685540939668,"y":20.5},{"x":1685541239749,"y":20.5},{"x":1685541539840,"y":20.8},{"x":1685541839913,"y":20.5},{"x":1685542139995,"y":20.4},{"x":1685542440177,"y":20.8},{"x":1685542740192,"y":20.4},{"x":1685543040283,"y":20.8},{"x":1685543340389,"y":20.5},{"x":1685543640471,"y":20.8},{"x":1685543940473,"y":20.5},{"x":1685544240621,"y":20.8},{"x":1685544540685,"y":20.5},{"x":1685544840799,"y":20.7},{"x":1685545140901,"y":20.5},{"x":1685545441001,"y":20.8},{"x":1685545741065,"y":20.6},{"x":1685546041186,"y":20.5},{"x":1685546341243,"y":20.7},{"x":1685546641292,"y":20.4},{"x":1685546941376,"y":20.8},{"x":1685547241438,"y":20.5},{"x":1685547541565,"y":20.8},{"x":1685547841634,"y":20.5},{"x":1685548141711,"y":20.8},{"x":1685548441854,"y":20.6},{"x":1685548741902,"y":20.5},{"x":1685549042002,"y":20.8},{"x":1685549342099,"y":20.5},{"x":1685549642156,"y":20.8},{"x":1685549942238,"y":20.7},{"x":1685550242287,"y":20.5},{"x":1685550542321,"y":20.8},{"x":1685550842435,"y":20.7},{"x":1685551142532,"y":20.5},{"x":1685551442679,"y":20.8},{"x":1685551742742,"y":20.8},{"x":1685552042824,"y":20.7},{"x":1685552342904,"y":20.6},{"x":1685552643024,"y":20.7},{"x":1685552943102,"y":20.7},{"x":1685553243197,"y":20.7},{"x":1685553543262,"y":20.7},{"x":1685553843353,"y":20.8},{"x":1685554143366,"y":20.8},{"x":1685554443531,"y":20.8},{"x":1685554743589,"y":20.8},{"x":1685555043690,"y":20.8},{"x":1685555343799,"y":20.8},{"x":1685555643872,"y":20.8},{"x":1685555943930,"y":20.8},{"x":1685556244056,"y":20.8},{"x":1685556544148,"y":20.8},{"x":1685556844209,"y":20.8},{"x":1685557144344,"y":20.7},{"x":1685557444363,"y":20.8},{"x":1685557744405,"y":20.7},{"x":1685558044539,"y":20.7},{"x":1685558344605,"y":20.7},{"x":1685558644713,"y":20.7},{"x":1685558944785,"y":20.7},{"x":1685559244901,"y":20.6},{"x":1685559544945,"y":20.6},{"x":1685559845042,"y":20.5},{"x":1685560145143,"y":20.5},{"x":1685560445241,"y":20.6},{"x":1685560745257,"y":20.5},{"x":1685561045328,"y":20.5},{"x":1685561345445,"y":20.5},{"x":1685561645525,"y":20.6},{"x":1685561945646,"y":20.8},{"x":1685562245696,"y":20.7},{"x":1685562545795,"y":20.6},{"x":1685562845871,"y":20.7},{"x":1685563145971,"y":20.8},{"x":1685563446094,"y":20.7},{"x":1685563746173,"y":20.5},{"x":1685564046283,"y":20.8},{"x":1685564346314,"y":20.8},{"x":1685564646386,"y":20.7},{"x":1685564946460,"y":20.6},{"x":1685565246561,"y":20.5},{"x":1685565546656,"y":20.7},{"x":1685565846745,"y":20.8},{"x":1685566146812,"y":20.6},{"x":1685566446933,"y":20.7},{"x":1685566746982,"y":20.7},{"x":1685567047084,"y":20.5},{"x":1685567347176,"y":20.8},{"x":1685567647243,"y":20.5},{"x":1685567947275,"y":20.8},{"x":1685568247414,"y":20.8},{"x":1685568547487,"y":20.8},{"x":1685568847582,"y":20.6},{"x":1685569147698,"y":20.6},{"x":1685569447750,"y":20.5},{"x":1685569747835,"y":20.8},{"x":1685570047948,"y":20.7},{"x":1685570348041,"y":20.5},{"x":1685570648135,"y":20.7},{"x":1685570948186,"y":20.7},{"x":1685571248285,"y":20.5},{"x":1685571548397,"y":20.7},{"x":1685571848461,"y":20.6},{"x":1685572148552,"y":20.7},{"x":1685572448646,"y":20.8},{"x":1685572748724,"y":20.7},{"x":1685573048812,"y":20.4},{"x":1685573348924,"y":20.8},{"x":1685573648998,"y":20.7},{"x":1685573949035,"y":20.5},{"x":1685574249162,"y":20.7},{"x":1685574564170,"y":20.5},{"x":1685574864211,"y":20.3},{"x":1685575164295,"y":20.3},{"x":1685575464392,"y":20.3},{"x":1685575764473,"y":20.2},{"x":1685576064520,"y":20},{"x":1685576364561,"y":19.9},{"x":1685576664649,"y":19.6},{"x":1685576964764,"y":19.5},{"x":1685577264783,"y":19.5},{"x":1685577564825,"y":19.5},{"x":1685577864898,"y":19.5},{"x":1685578165022,"y":19.5},{"x":1685578465041,"y":19.5},{"x":1685578765123,"y":19.5},{"x":1685579065190,"y":19.5},{"x":1685579365242,"y":19.5},{"x":1685579665270,"y":19.5},{"x":1685579965342,"y":19.5},{"x":1685580265419,"y":19.5},{"x":1685580565474,"y":19.5},{"x":1685580865528,"y":19.5},{"x":1685581165617,"y":19.5},{"x":1685581465707,"y":19.5},{"x":1685581765780,"y":19.5},{"x":1685582065871,"y":19.5},{"x":1685582365914,"y":19.5},{"x":1685582665994,"y":19.5},{"x":1685582966029,"y":19.5},{"x":1685583266054,"y":19.5},{"x":1685583566137,"y":19.5},{"x":1685583866167,"y":19.5},{"x":1685584166249,"y":19.5},{"x":1685584466332,"y":19.5},{"x":1685584766387,"y":19.5},{"x":1685585066444,"y":19.5},{"x":1685585366558,"y":19.5},{"x":1685585666591,"y":19.5},{"x":1685585966705,"y":19.5},{"x":1685586281700,"y":19.5},{"x":1685586581763,"y":19.5},{"x":1685586881831,"y":19.5},{"x":1685587181935,"y":19.5},{"x":1685587481999,"y":19.4},{"x":1685587782043,"y":19.4},{"x":1685588082116,"y":19.4},{"x":1685588382188,"y":19.4},{"x":1685588682255,"y":19.4},{"x":1685588982296,"y":19.4},{"x":1685589282341,"y":19.3},{"x":1685589582405,"y":19.4},{"x":1685589882472,"y":19.4},{"x":1685590182540,"y":19.3},{"x":1685590482618,"y":19.3},{"x":1685590782722,"y":19.3},{"x":1685591082771,"y":19.3},{"x":1685591382819,"y":19.2},{"x":1685591682931,"y":19.2},{"x":1685591982967,"y":19.2},{"x":1685592282986,"y":19.2},{"x":1685592583082,"y":19.2},{"x":1685592883165,"y":19.2},{"x":1685593183195,"y":19.2},{"x":1685593483277,"y":19.1},{"x":1685593783380,"y":19.2},{"x":1685594083450,"y":19.2},{"x":1685594383491,"y":19.2},{"x":1685594683592,"y":19.1},{"x":1685594983618,"y":19.1},{"x":1685595283711,"y":19.1},{"x":1685595583730,"y":19.1},{"x":1685595883817,"y":19},{"x":1685596183896,"y":19},{"x":1685596483953,"y":19},{"x":1685596784061,"y":19},{"x":1685597084124,"y":19},{"x":1685597384139,"y":19.1},{"x":1685597684213,"y":19},{"x":1685597984240,"y":19},{"x":1685598284312,"y":19},{"x":1685598584338,"y":19},{"x":1685598884381,"y":19},{"x":1685599184436,"y":19},{"x":1685599499407,"y":19},{"x":1685599799490,"y":18.9},{"x":1685600099528,"y":19},{"x":1685600399539,"y":19},{"x":1685600699637,"y":19},{"x":1685600999644,"y":19},{"x":1685601299689,"y":19},{"x":1685601599758,"y":19},{"x":1685601899826,"y":19},{"x":1685602199848,"y":18.9},{"x":1685602499869,"y":18.9},{"x":1685602799939,"y":19},{"x":1685603099979,"y":18.9},{"x":1685603414978,"y":18.9},{"x":1685603715053,"y":19},{"x":1685604030039,"y":19},{"x":1685604330117,"y":19},{"x":1685604630167,"y":19},{"x":1685604930199,"y":19},{"x":1685605230238,"y":18.9},{"x":1685605530260,"y":19},{"x":1685605830318,"y":19},{"x":1685606130319,"y":19},{"x":1685606430335,"y":19},{"x":1685606730393,"y":19},{"x":1685607030458,"y":19},{"x":1685607330485,"y":19.5},{"x":1685607630516,"y":20.3},{"x":1685607930568,"y":20.6},{"x":1685608230576,"y":20.4},{"x":1685608530643,"y":20.5},{"x":1685608830684,"y":20.5},{"x":1685609130723,"y":20.5},{"x":1685609430778,"y":20.5},{"x":1685609745753,"y":20.7},{"x":1685610045798,"y":20.4},{"x":1685610345834,"y":20.7},{"x":1685610645876,"y":20.4},{"x":1685610945921,"y":20.8},{"x":1685611245935,"y":20.5},{"x":1685611545963,"y":20.8},{"x":1685611845989,"y":20.6},{"x":1685612146117,"y":20.5},{"x":1685612446189,"y":20.8},{"x":1685612746312,"y":20.6},{"x":1685613046346,"y":20.5},{"x":1685613346425,"y":20.8},{"x":1685613646580,"y":20.6},{"x":1685613961556,"y":20.6},{"x":1685614261648,"y":20.7},{"x":1685614576669,"y":20.7},{"x":1685614876695,"y":20.5},{"x":1685615176733,"y":20.4},{"x":1685615476808,"y":20.7},{"x":1685615776863,"y":20.7},{"x":1685616076917,"y":20.5},{"x":1685616376987,"y":20.4},{"x":1685616677033,"y":20.3},{"x":1685616977113,"y":20.3},{"x":1685617277203,"y":20.3},{"x":1685617577236,"y":20.3},{"x":1685617877275,"y":20.2},{"x":1685618177324,"y":20.3},{"x":1685618477408,"y":20.2},{"x":1685618777447,"y":20.3},{"x":1685619077601,"y":20.2},{"x":1685619377646,"y":20.2},{"x":1685619677730,"y":20.1},{"x":1685619977761,"y":20.2},{"x":1685620017473,"y":20.1},{"x":1685620080667,"y":20.1}],{"x":1685015251039,"y":19.18},{"x":1685015551015,"y":19.18},{"x":1685015851010,"y":19.18},{"x":1685016151028,"y":19.09},{"x":1685016451042,"y":18.75},{"x":1685016751019,"y":18.66},{"x":1685017051028,"y":18.75},{"x":1685017351047,"y":18.89},{"x":1685017651031,"y":18.8},{"x":1685017951098,"y":18.83},{"x":1685018251018,"y":18.3},{"x":1685018551020,"y":18.3},{"x":1685018851032,"y":18.36},{"x":1685019151038,"y":18.36},{"x":1685019451035,"y":19.14},{"x":1685019751031,"y":19.04},{"x":1685020051038,"y":19.64},{"x":1685020351040,"y":19.42},{"x":1685020651063,"y":19.88},{"x":1685020951079,"y":19.73},{"x":1685021251036,"y":19.73},{"x":1685021551137,"y":19.54},{"x":1685021851047,"y":19.21},{"x":1685022151057,"y":19.13},{"x":1685022451042,"y":19.21},{"x":1685022751080,"y":19.1},{"x":1685023051043,"y":18.46},{"x":1685023351058,"y":18.46},{"x":1685023651118,"y":18.47},{"x":1685023951188,"y":18.48},{"x":1685024251055,"y":18.48},{"x":1685024551051,"y":18.44},{"x":1685024851052,"y":18.44},{"x":1685025151135,"y":18.73},{"x":1685025451076,"y":18.73},{"x":1685025751061,"y":18.73},{"x":1685026051071,"y":19.02},{"x":1685026351158,"y":19.05},{"x":1685026651115,"y":19.03},{"x":1685026951071,"y":19.03},{"x":1685027251066,"y":19.03},{"x":1685027551148,"y":18.62},{"x":1685027851058,"y":18.62},{"x":1685028151059,"y":18.62},{"x":1685028451112,"y":19},{"x":1685028751146,"y":18.91},{"x":1685029051091,"y":18.1},{"x":1685029351104,"y":18.12},{"x":1685029651134,"y":18.51},{"x":1685029951350,"y":18.12},{"x":1685030251085,"y":18.51},{"x":1685030551087,"y":18.42},{"x":1685030851113,"y":18.46},{"x":1685031151160,"y":18.37},{"x":1685031451109,"y":18.33},{"x":1685031751080,"y":18.21},{"x":1685032051082,"y":18.3},{"x":1685032351518,"y":18.3},{"x":1685032651206,"y":17.89},{"x":1685032951081,"y":17.8},{"x":1685033251086,"y":17.8},{"x":1685033551096,"y":17.8},{"x":1685033851075,"y":17.8},{"x":1685034151086,"y":17.78},{"x":1685034451139,"y":17.63},{"x":1685034751066,"y":17.63},{"x":1685035051075,"y":17.63},{"x":1685035351084,"y":17.54},{"x":1685035651091,"y":17.54},{"x":1685035951102,"y":17.55},{"x":1685036251109,"y":17.28},{"x":1685036551080,"y":17.54},{"x":1685036851085,"y":17.25},{"x":1685037151113,"y":17.2},{"x":1685037451085,"y":16.99},{"x":1685037751124,"y":16.99},{"x":1685038051100,"y":16.99},{"x":1685038351547,"y":17.1},{"x":1685038651116,"y":17.02},{"x":1685038951187,"y":16.94},{"x":1685039251190,"y":16.88},{"x":1685039551190,"y":16.85},{"x":1685039851181,"y":16.85},{"x":1685040151138,"y":16.82},{"x":1685040451132,"y":16.79},{"x":1685040751183,"y":16.79},{"x":1685041051160,"y":16.79},{"x":1685041351171,"y":16.7},{"x":1685041651173,"y":16.44},{"x":1685041951215,"y":16.44},{"x":1685042251220,"y":16.48},{"x":1685042551262,"y":16.52},{"x":1685042851204,"y":16.48},{"x":1685043151252,"y":16.52},{"x":1685043451209,"y":16.4},{"x":1685043751246,"y":16.26},{"x":1685044051210,"y":16.26},{"x":1685044351522,"y":16.26},{"x":1685044651215,"y":16.17},{"x":1685044951218,"y":16.17},{"x":1685045251281,"y":15.98},{"x":1685045551345,"y":15.98},{"x":1685045851232,"y":16.01},{"x":1685046151240,"y":15.98},{"x":1685046451276,"y":15.75},{"x":1685046751262,"y":15.75},{"x":1685047051266,"y":15.75},{"x":1685047351285,"y":15.68},{"x":1685047651267,"y":15.68},{"x":1685047951728,"y":15.49},{"x":1685048251321,"y":15.5},{"x":1685048551265,"y":15.49},{"x":1685048851352,"y":15.35},{"x":1685049151302,"y":15.35},{"x":1685049451264,"y":14.98},{"x":1685049751268,"y":14.98},{"x":1685050051322,"y":14.97},{"x":1685050351309,"y":14.97},{"x":1685050651266,"y":14.75},{"x":1685050951264,"y":14.75},{"x":1685051251276,"y":14.82},{"x":1685051551291,"y":14.73},{"x":1685051851384,"y":14.57},{"x":1685052151274,"y":14.41},{"x":1685052451281,"y":14.41},{"x":1685052751280,"y":14.35},{"x":1685053051279,"y":14.49},{"x":1685053351326,"y":14.29},{"x":1685053651310,"y":14.3},{"x":1685053951323,"y":14.29},{"x":1685054251377,"y":13.95},{"x":1685054551303,"y":13.95},{"x":1685054851307,"y":13.95},{"x":1685055151655,"y":13.71},{"x":1685055451302,"y":13.71},{"x":1685055751335,"y":13.58},{"x":1685056051330,"y":13.55},{"x":1685056351435,"y":13.58},{"x":1685056651370,"y":13.33},{"x":1685056951348,"y":13.58},{"x":1685057251335,"y":13.23},{"x":1685057551642,"y":13.23},{"x":1685057851342,"y":13.23},{"x":1685058151360,"y":12.98},{"x":1685058451395,"y":13},{"x":1685058751511,"y":13.01},{"x":1685059051391,"y":13.01},{"x":1685059351339,"y":12.9},{"x":1685059651359,"y":12.9},{"x":1685059951438,"y":12.48},{"x":1685060251356,"y":12.48},{"x":1685060551372,"y":12.48},{"x":1685060851371,"y":12.32},{"x":1685061151374,"y":12.32},{"x":1685061451412,"y":11.72},{"x":1685061751394,"y":11.63},{"x":1685062051381,"y":11.72},{"x":1685062352047,"y":11.55},{"x":1685062651444,"y":11.36},{"x":1685062951373,"y":11.46},{"x":1685063251410,"y":11.36},{"x":1685063551479,"y":11.37},{"x":1685063851380,"y":11.36},{"x":1685064151391,"y":11.44},{"x":1685064451471,"y":11.34},{"x":1685064751589,"y":11.32},{"x":1685065051396,"y":11.26},{"x":1685065351399,"y":11.22},{"x":1685065651409,"y":11.39},{"x":1685065952272,"y":11.33},{"x":1685066251396,"y":11.21},{"x":1685066551403,"y":11.21},{"x":1685066851417,"y":11.34},{"x":1685067151442,"y":11.28},{"x":1685067451399,"y":11.27},{"x":1685067751460,"y":11.06},{"x":1685068051420,"y":11.27},{"x":1685068351485,"y":11.02},{"x":1685068651412,"y":11.02},{"x":1685068951402,"y":10.91},{"x":1685069251450,"y":11},{"x":1685069551482,"y":11},{"x":1685069851414,"y":10.88},{"x":1685070151414,"y":10.66},{"x":1685070451408,"y":10.66},{"x":1685070752331,"y":10.76},{"x":1685071051424,"y":10.76},{"x":1685071351428,"y":10.76},{"x":1685071651498,"y":10.55},{"x":1685071951451,"y":10.55},{"x":1685072251483,"y":10.55},{"x":1685072551428,"y":10.55},{"x":1685072851477,"y":10.34},{"x":1685073151490,"y":10.34},{"x":1685073451401,"y":10.34},{"x":1685073751433,"y":10.08},{"x":1685074051433,"y":10.08},{"x":1685074351659,"y":9.98},{"x":1685074651481,"y":9.98},{"x":1685074951442,"y":9.98},{"x":1685075251486,"y":9.76},{"x":1685075553145,"y":9.76},{"x":1685075851454,"y":9.76},{"x":1685076151559,"y":9.76},{"x":1685076451455,"y":9.76},{"x":1685076751637,"y":9.76},{"x":1685077051562,"y":10.23},{"x":1685077351466,"y":10.23},{"x":1685077651495,"y":10.23},{"x":1685077951596,"y":10.15},{"x":1685078251465,"y":10.36},{"x":1685078551490,"y":10.36},{"x":1685078851486,"y":10.82},{"x":1685079152413,"y":10.82},{"x":1685079451481,"y":11.06},{"x":1685079751484,"y":11.06},{"x":1685080051515,"y":11.26},{"x":1685080353153,"y":11.08},{"x":1685080651466,"y":11.37},{"x":1685080951559,"y":11.85},{"x":1685081251496,"y":12.07},{"x":1685081552662,"y":11.54},{"x":1685081851505,"y":11.54},{"x":1685082151498,"y":12.9},{"x":1685082451574,"y":11.98},{"x":1685082752768,"y":12.05},{"x":1685083051516,"y":12.05},{"x":1685083351518,"y":12.54},{"x":1685083651522,"y":12.54},{"x":1685083951825,"y":13.01},{"x":1685084251526,"y":13.01},{"x":1685084551531,"y":13.84},{"x":1685084851537,"y":14.15},{"x":1685085154315,"y":14.2},{"x":1685085451540,"y":14.2},{"x":1685085751599,"y":14.74},{"x":1685086051532,"y":14.65},{"x":1685086352440,"y":14.65},{"x":1685086651538,"y":15.31},{"x":1685086951544,"y":15.31},{"x":1685087251583,"y":15.43},{"x":1685087552469,"y":15.61},{"x":1685087851550,"y":15.43},{"x":1685088151549,"y":15.75},{"x":1685088451547,"y":15.75},{"x":1685088752994,"y":16.44},{"x":1685089051545,"y":16.44},{"x":1685089351589,"y":16.84},{"x":1685089651598,"y":16.44},{"x":1685089952825,"y":16.84},{"x":1685090251561,"y":17.35},{"x":1685090551636,"y":17.66},{"x":1685090851564,"y":17.56},{"x":1685091152016,"y":17.66},{"x":1685091451594,"y":17.93},{"x":1685091751567,"y":18.04},{"x":1685092051581,"y":17.93},{"x":1685092352469,"y":18.08},{"x":1685092651613,"y":18.17},{"x":1685092951598,"y":18.25},{"x":1685093251572,"y":18.23},{"x":1685093551684,"y":18.43},{"x":1685093851596,"y":18.5},{"x":1685094151578,"y":18.5},{"x":1685094451581,"y":18.85},{"x":1685094753849,"y":18.85},{"x":1685095051634,"y":19.17},{"x":1685095351592,"y":19.09},{"x":1685095651582,"y":19.37},{"x":1685095952262,"y":19.37},{"x":1685096251665,"y":19.46},{"x":1685096551653,"y":19.46},{"x":1685096851597,"y":19.46},{"x":1685097151894,"y":19.32},{"x":1685097451605,"y":19.59},{"x":1685097751603,"y":19.85},{"x":1685098051603,"y":19.75},{"x":1685098351825,"y":19.65},{"x":1685098651611,"y":19.82},{"x":1685098951612,"y":19.65},{"x":1685099251620,"y":19.57},{"x":1685099554557,"y":19.84},{"x":1685099851611,"y":19.98},{"x":1685100151610,"y":19.98},{"x":1685100451674,"y":19.9},{"x":1685100751631,"y":19.9},{"x":1685101051671,"y":20.45},{"x":1685101351650,"y":20.45},{"x":1685101651625,"y":20.45},{"x":1685101952592,"y":19.74},{"x":1685102251628,"y":19.74},{"x":1685102551620,"y":19.74},{"x":1685102851630,"y":19.84},{"x":1685103152663,"y":20.53},{"x":1685103451625,"y":20.53},{"x":1685103751638,"y":20.37},{"x":1685104051653,"y":20.37},{"x":1685104351690,"y":20.42},{"x":1685104651625,"y":20.92},{"x":1685104951669,"y":21.05},{"x":1685105251635,"y":20.92},{"x":1685106270209,"y":21.51},{"x":1685106570210,"y":21.28},{"x":1685106870262,"y":21.31},{"x":1685107170259,"y":20.87},{"x":1685107470202,"y":20.87},{"x":1685107770205,"y":20.87},{"x":1685108070201,"y":20.24},{"x":1685108370268,"y":20.24},{"x":1685108670211,"y":20.81},{"x":1685108970215,"y":20.61},{"x":1685109270264,"y":21.02},{"x":1685109570225,"y":21.02},{"x":1685109870210,"y":21.35},{"x":1685110170276,"y":21.42},{"x":1685110470215,"y":21.08},{"x":1685110770218,"y":21.08},{"x":1685111070267,"y":21.3},{"x":1685111370237,"y":21.32},{"x":1685111670242,"y":21.21},{"x":1685111970278,"y":21.56},{"x":1685112270243,"y":21.43},{"x":1685112570286,"y":20.62},{"x":1685112870312,"y":20.61},{"x":1685113170279,"y":20.61},{"x":1685113470259,"y":20.52},{"x":1685113770274,"y":21.03},{"x":1685114070330,"y":20.96},{"x":1685114370346,"y":20.62},{"x":1685114670290,"y":20.62},{"x":1685114970303,"y":20.62},{"x":1685115270293,"y":20.57},{"x":1685115570345,"y":20.81},{"x":1685115870301,"y":20.81},{"x":1685116170341,"y":20.85},{"x":1685116470425,"y":20.35},{"x":1685116770319,"y":20.73},{"x":1685117070306,"y":20.35},{"x":1685117370344,"y":20.75},{"x":1685117670330,"y":20.75},{"x":1685117970336,"y":20.75},{"x":1685118270330,"y":20.45},{"x":1685118570325,"y":20.45},{"x":1685118870362,"y":19.95},{"x":1685119170359,"y":19.95},{"x":1685119470369,"y":19.95},{"x":1685119770365,"y":19.92},{"x":1685120070363,"y":20.06},{"x":1685120370385,"y":20.17},{"x":1685120670359,"y":20.17},{"x":1685120970383,"y":20.08},{"x":1685121270373,"y":19.95},{"x":1685121570376,"y":19.85},{"x":1685121870394,"y":19.88},{"x":1685122170385,"y":19.88},{"x":1685122470467,"y":19},{"x":1685122770415,"y":19},{"x":1685123070412,"y":19},{"x":1685123370409,"y":18.86},{"x":1685123670402,"y":18.86},{"x":1685123970418,"y":18.86},{"x":1685124270399,"y":18.86},{"x":1685124570415,"y":18.79},{"x":1685124870446,"y":18.79},{"x":1685125170457,"y":18.85},{"x":1685125470494,"y":18.85},{"x":1685125770424,"y":18.85},{"x":1685126070436,"y":18.71},{"x":1685126370464,"y":18.71},{"x":1685126670446,"y":18.67},{"x":1685126970458,"y":18.67},{"x":1685127270730,"y":17.76},{"x":1685127570540,"y":17.84},{"x":1685127870479,"y":17.42},{"x":1685128170488,"y":17.42},{"x":1685128470446,"y":17.32},{"x":1685128770711,"y":17.38},{"x":1685129070493,"y":17.55},{"x":1685129370460,"y":17.46},{"x":1685129670456,"y":17.51},{"x":1685129970444,"y":16.98},{"x":1685130270452,"y":16.94},{"x":1685130570463,"y":16.94},{"x":1685130870454,"y":16.63},{"x":1685131170558,"y":16.63},{"x":1685131470459,"y":16.63},{"x":1685131770480,"y":15.83},{"x":1685132070539,"y":15.61},{"x":1685132370654,"y":15.61},{"x":1685132670510,"y":15.17},{"x":1685132970470,"y":15.17},{"x":1685133270483,"y":15.17},{"x":1685133570534,"y":15.33},{"x":1685133870537,"y":15.17},{"x":1685134170481,"y":15.33},{"x":1685134470522,"y":15.17},{"x":1685134770619,"y":15.17},{"x":1685135070468,"y":15.17},{"x":1685135370539,"y":14.12},{"x":1685135670470,"y":14.12},{"x":1685135970588,"y":14.12},{"x":1685136270506,"y":13.94},{"x":1685136570482,"y":13.94},{"x":1685136870483,"y":13.88},{"x":1685137170591,"y":13.53},{"x":1685137470482,"y":13.29},{"x":1685137770513,"y":13.29},{"x":1685138070565,"y":13.24},{"x":1685138370612,"y":13.3},{"x":1685138670513,"y":12.65},{"x":1685138970488,"y":13.03},{"x":1685139270567,"y":12.44},{"x":1685139570520,"y":12.44},{"x":1685139870495,"y":12.47},{"x":1685140170514,"y":12.41},{"x":1685140470469,"y":12.41},{"x":1685140770566,"y":12.32},{"x":1685141070532,"y":11.91},{"x":1685141370505,"y":11.91},{"x":1685141670535,"y":11.91},{"x":1685141970572,"y":11.87},{"x":1685142270528,"y":11.87},{"x":1685142570539,"y":11.49},{"x":1685142870540,"y":11.49},{"x":1685143170721,"y":11.69},{"x":1685143470532,"y":11.69},{"x":1685143770537,"y":11.69},{"x":1685144070587,"y":11.38},{"x":1685144370585,"y":11.29},{"x":1685144670544,"y":11.38},{"x":1685144970592,"y":11.66},{"x":1685145270578,"y":11.66},{"x":1685145570616,"y":11.66},{"x":1685145870578,"y":11.54},{"x":1685146170575,"y":11.3},{"x":1685146470586,"y":11.26},{"x":1685146770618,"y":10.97},{"x":1685147070575,"y":10.97},{"x":1685147370627,"y":11.06},{"x":1685147670593,"y":10.78},{"x":1685147970600,"y":11.06},{"x":1685148270605,"y":10.65},{"x":1685148570644,"y":10.63},{"x":1685148870584,"y":10.63},{"x":1685149170590,"y":10.63},{"x":1685149470587,"y":10.44},{"x":1685149770583,"y":10.44},{"x":1685150070580,"y":10.1},{"x":1685150370584,"y":10.1},{"x":1685150670582,"y":10.03},{"x":1685150970594,"y":10.03},{"x":1685151270632,"y":10.08},{"x":1685151570591,"y":10.08},{"x":1685151870605,"y":9.61},{"x":1685152170611,"y":9.61},{"x":1685152470611,"y":9.42},{"x":1685152770613,"y":9.42},{"x":1685153070628,"y":9.48},{"x":1685153370683,"y":9.39},{"x":1685153670664,"y":9.33},{"x":1685153970636,"y":9.33},{"x":1685154270611,"y":9.33},{"x":1685154570650,"y":9.14},{"x":1685154870623,"y":9.14},{"x":1685155170939,"y":9.05},{"x":1685155470674,"y":8.95},{"x":1685155770628,"y":8.95},{"x":1685156070642,"y":8.86},{"x":1685156370678,"y":8.95},{"x":1685156670691,"y":8.95},{"x":1685156970647,"y":8.95},{"x":1685157270649,"y":8.48},{"x":1685157570728,"y":8.51},{"x":1685157870653,"y":8.67},{"x":1685158170653,"y":8.67},{"x":1685158470652,"y":8.47},{"x":1685158770755,"y":8.29},{"x":1685159070671,"y":8.29},{"x":1685159370691,"y":8.19},{"x":1685159670661,"y":8.19},{"x":1685159971379,"y":8.08},{"x":1685160270711,"y":8.04},{"x":1685160570739,"y":8.22},{"x":1685160870655,"y":8.22},{"x":1685161170787,"y":8.04},{"x":1685161470703,"y":8.24},{"x":1685161770668,"y":8.04},{"x":1685162070717,"y":8.02},{"x":1685162371170,"y":7.93},{"x":1685162670708,"y":8.02},{"x":1685162970719,"y":8.55},{"x":1685163270676,"y":8.55},{"x":1685163571126,"y":8.55},{"x":1685163870678,"y":8.77},{"x":1685164170681,"y":8.69},{"x":1685164470773,"y":9.46},{"x":1685164771057,"y":9.68},{"x":1685165070675,"y":9.97},{"x":1685165370677,"y":9.83},{"x":1685165670713,"y":10.29},{"x":1685165970916,"y":10.29},{"x":1685166270681,"y":10.47},{"x":1685166570684,"y":10.47},{"x":1685166870680,"y":11},{"x":1685167171095,"y":10.85},{"x":1685167470678,"y":11.53},{"x":1685167770689,"y":12.14},{"x":1685168070683,"y":12.14},{"x":1685168370787,"y":11.68},{"x":1685168670739,"y":11.68},{"x":1685168970743,"y":11.98},{"x":1685169270696,"y":11.98},{"x":1685169570699,"y":11.98},{"x":1685169870784,"y":13.66},{"x":1685170170701,"y":13.66},{"x":1685170470695,"y":13.66},{"x":1685170770757,"y":13.66},{"x":1685171070684,"y":13.98},{"x":1685171370697,"y":13.98},{"x":1685171670698,"y":14.38},{"x":1685171971138,"y":14.38},{"x":1685172270759,"y":13.85},{"x":1685172570699,"y":13.85},{"x":1685172870711,"y":13.85},{"x":1685173170778,"y":15.4},{"x":1685173470740,"y":15.5},{"x":1685173770702,"y":15.18},{"x":1685174070719,"y":15.49},{"x":1685174371094,"y":15.8},{"x":1685174670695,"y":15.49},{"x":1685174970800,"y":16.03},{"x":1685175270722,"y":15.86},{"x":1685175570763,"y":15.86},{"x":1685175870697,"y":16.35},{"x":1685176170707,"y":16.48},{"x":1685176470754,"y":16.94},{"x":1685176770748,"y":16.94},{"x":1685177070739,"y":17.05},{"x":1685177370721,"y":17.05},{"x":1685177670735,"y":17.05},{"x":1685177971115,"y":17.66},{"x":1685178270740,"y":17.66},{"x":1685178570747,"y":17.64},{"x":1685178870774,"y":18.01},{"x":1685179171072,"y":17.92},{"x":1685179470822,"y":18.19},{"x":1685179770758,"y":18.1},{"x":1685180070762,"y":18.19},{"x":1685180370805,"y":18.1},{"x":1685180670780,"y":18.51},{"x":1685180970809,"y":18.65},{"x":1685181270793,"y":18.72},{"x":1685181570900,"y":19.19},{"x":1685181870801,"y":19.1},{"x":1685182170811,"y":19.19},{"x":1685182470860,"y":19.44},{"x":1685182771048,"y":19.67},{"x":1685183070826,"y":19.44},{"x":1685183370877,"y":19.67},{"x":1685183670882,"y":19.85},{"x":1685183970939,"y":19.85},{"x":1685184270841,"y":19.85},{"x":1685184570853,"y":19.96},{"x":1685184870900,"y":20.18},{"x":1685185170967,"y":20.47},{"x":1685185470866,"y":20.18},{"x":1685185770871,"y":20.65},{"x":1685186070870,"y":20.65},{"x":1685186370892,"y":20.6},{"x":1685186670893,"y":20.57},{"x":1685186970904,"y":20.71},{"x":1685187270868,"y":20.71},{"x":1685187572989,"y":20.99},{"x":1685187870872,"y":20.99},{"x":1685188170877,"y":20.99},{"x":1685188470913,"y":21.13},{"x":1685188771470,"y":21.2},{"x":1685189070899,"y":21.12},{"x":1685189370894,"y":21.2},{"x":1685189670921,"y":21.41},{"x":1685189971610,"y":21.41},{"x":1685190270898,"y":21.41},{"x":1685190570940,"y":21.32},{"x":1685190870918,"y":21.32},{"x":1685191171751,"y":21.78},{"x":1685191470923,"y":21.68},{"x":1685191770922,"y":21.68},{"x":1685192070981,"y":22.17},{"x":1685192371026,"y":22.17},{"x":1685192670934,"y":22.17},{"x":1685192970954,"y":22.46},{"x":1685193270953,"y":22.46},{"x":1685193571076,"y":21.99},{"x":1685193870942,"y":21.91},{"x":1685194171071,"y":21.99},{"x":1685194470972,"y":21.91},{"x":1685194770981,"y":21.91},{"x":1685195070960,"y":23.06},{"x":1685195370975,"y":22.73},{"x":1685195670969,"y":23.06},{"x":1685195971032,"y":22.82},{"x":1685196270973,"y":22.82},{"x":1685196570982,"y":22.82},{"x":1685196870986,"y":21.82},{"x":1685197171084,"y":21.93},{"x":1685197470984,"y":22.31},{"x":1685197770988,"y":22.31},{"x":1685198070990,"y":22.31},{"x":1685198371020,"y":22.31},{"x":1685198671053,"y":22.37},{"x":1685198970993,"y":22.23},{"x":1685199271011,"y":22.37},{"x":1685199571046,"y":22.48},{"x":1685199871115,"y":21.98},{"x":1685200171006,"y":21.98},{"x":1685200471008,"y":21.98},{"x":1685200771192,"y":22.9},{"x":1685201071014,"y":22.9},{"x":1685201371067,"y":22.11},{"x":1685201671018,"y":22.11},{"x":1685201971372,"y":22.11},{"x":1685202271010,"y":21.91},{"x":1685202571020,"y":21.91},{"x":1685202871094,"y":22.37},{"x":1685203171957,"y":22.04},{"x":1685203471024,"y":21.92},{"x":1685203771087,"y":22.72},{"x":1685204071079,"y":22.72},{"x":1685204372043,"y":22.63},{"x":1685204671023,"y":22.63},{"x":1685204971067,"y":22.65},{"x":1685205271028,"y":22.65},{"x":1685205571490,"y":22.29},{"x":1685205871024,"y":21.93},{"x":1685206171037,"y":21.93},{"x":1685206471023,"y":21.53},{"x":1685206771057,"y":21.53},{"x":1685207071049,"y":20.84},{"x":1685207371039,"y":20.84},{"x":1685207671107,"y":20.92},{"x":1685207971068,"y":20.84},{"x":1685208271098,"y":22.62},{"x":1685208571110,"y":22.62},{"x":1685208871086,"y":22.62},{"x":1685209171774,"y":20.91},{"x":1685209471092,"y":20.82},{"x":1685209771092,"y":19.71},{"x":1685210071129,"y":19.73},{"x":1685210371211,"y":19.73},{"x":1685210671121,"y":19.24},{"x":1685210971142,"y":21.59},{"x":1685211271109,"y":21.59},{"x":1685211573673,"y":21.59},{"x":1685211871103,"y":21.59},{"x":1685212171150,"y":21.56},{"x":1685212471136,"y":21.47},{"x":1685212771652,"y":20.46},{"x":1685213071195,"y":20.46},{"x":1685213371188,"y":19.23},{"x":1685213671169,"y":19.15},{"x":1685213971280,"y":19.23},{"x":1685214271228,"y":19.41},{"x":1685214571150,"y":19.41},{"x":1685214871151,"y":19.24},{"x":1685215171157,"y":19.21},{"x":1685215471219,"y":19.21},{"x":1685215771223,"y":18.87},{"x":1685216071239,"y":18.72},{"x":1685216371187,"y":18.87},{"x":1685216671220,"y":16.48},{"x":1685216971167,"y":16.48},{"x":1685217271190,"y":16.48},{"x":1685217571385,"y":16.48},{"x":1685217871202,"y":16.48},{"x":1685218171176,"y":16.48},{"x":1685218471193,"y":17.13},{"x":1685218772083,"y":17.04},{"x":1685219071242,"y":16.94},{"x":1685219371182,"y":16.94},{"x":1685219671182,"y":16.94},{"x":1685219971327,"y":17.29},{"x":1685220271195,"y":17.28},{"x":1685220571204,"y":17.28},{"x":1685220871265,"y":16.43},{"x":1685221171213,"y":16.43},{"x":1685221471206,"y":16.43},{"x":1685221771244,"y":16.32},{"x":1685222071214,"y":16.32},{"x":1685222371240,"y":16.22},{"x":1685222671231,"y":15.63},{"x":1685222971227,"y":15.63},{"x":1685223271215,"y":15.63},{"x":1685223571642,"y":15.63},{"x":1685223871216,"y":14.69},{"x":1685224171238,"y":14.69},{"x":1685224471255,"y":15.05},{"x":1685224771718,"y":15.05},{"x":1685225071254,"y":15},{"x":1685225371225,"y":14.91},{"x":1685225671230,"y":14.91},{"x":1685225971278,"y":15.03},{"x":1685226271229,"y":14.76},{"x":1685226571268,"y":14.62},{"x":1685226871228,"y":14.62},{"x":1685227171310,"y":14.58},{"x":1685227471236,"y":14.47},{"x":1685227771233,"y":14.47},{"x":1685228071264,"y":14.56},{"x":1685228371438,"y":14.56},{"x":1685228671307,"y":14.37},{"x":1685228971287,"y":14.26},{"x":1685229271247,"y":14.17},{"x":1685229571283,"y":14.26},{"x":1685229871252,"y":14.08},{"x":1685230171240,"y":14.08},{"x":1685230471249,"y":13.81},{"x":1685230771547,"y":13.9},{"x":1685231071282,"y":13.88},{"x":1685231371247,"y":13.88},{"x":1685231671245,"y":13.57},{"x":1685231971299,"y":13.8},{"x":1685232271267,"y":13.8},{"x":1685232571258,"y":13.67},{"x":1685232871256,"y":13.67},{"x":1685233172128,"y":13.34},{"x":1685233471266,"y":13.26},{"x":1685233771304,"y":13.55},{"x":1685234071280,"y":13.5},{"x":1685234371267,"y":13.55},{"x":1685234671308,"y":13.47},{"x":1685234971294,"y":13.47},{"x":1685235271259,"y":13.47},{"x":1685235573201,"y":13.47},{"x":1685235871295,"y":13.51},{"x":1685236171262,"y":13.65},{"x":1685236471308,"y":13.36},{"x":1685236772640,"y":13.36},{"x":1685237071263,"y":13.55},{"x":1685237371273,"y":13.46},{"x":1685237671265,"y":13.46},{"x":1685237972838,"y":13.08},{"x":1685238271265,"y":13.08},{"x":1685238571268,"y":13.08},{"x":1685238871275,"y":13.28},{"x":1685239172611,"y":13.41},{"x":1685239471288,"y":13.33},{"x":1685239771274,"y":13.31},{"x":1685240071325,"y":13.15},{"x":1685240372227,"y":13.07},{"x":1685240671318,"y":13.07},{"x":1685240971329,"y":13.07},{"x":1685241271288,"y":13.07},{"x":1685241571466,"y":13.07},{"x":1685241871279,"y":12.98},{"x":1685242171369,"y":13.28},{"x":1685242471346,"y":13.28},{"x":1685242771307,"y":13.28},{"x":1685243071278,"y":13.28},{"x":1685243371329,"y":13.28},{"x":1685243671340,"y":13.34},{"x":1685243971443,"y":13.34},{"x":1685244271334,"y":13.34},{"x":1685244571292,"y":13.34},{"x":1685244871333,"y":13.47},{"x":1685245171537,"y":13.69},{"x":1685245471361,"y":13.69},{"x":1685245771298,"y":13.69},{"x":1685246071304,"y":13.6},{"x":1685246371537,"y":13.65},{"x":1685246671321,"y":13.56},{"x":1685246971335,"y":13.65},{"x":1685247271382,"y":13.48},{"x":1685247571470,"y":13.48},{"x":1685247871384,"y":13.28},{"x":1685248171411,"y":13.28},{"x":1685248471353,"y":13.24},{"x":1685248771403,"y":13.24},{"x":1685249071402,"y":13.23},{"x":1685249371376,"y":13.23},{"x":1685249671393,"y":13.23},{"x":1685249971493,"y":13.17},{"x":1685250271426,"y":13.08},{"x":1685250571467,"y":13.11},{"x":1685250871415,"y":13.14},{"x":1685251171439,"y":13.14},{"x":1685251471413,"y":13.14},{"x":1685251771409,"y":13.14},{"x":1685252071420,"y":13.19},{"x":1685252371615,"y":13.25},{"x":1685252671425,"y":13.17},{"x":1685252971434,"y":13.18},{"x":1685253271482,"y":13.38},{"x":1685253571596,"y":13.3},{"x":1685253871453,"y":13.38},{"x":1685254171462,"y":13.45},{"x":1685254471470,"y":13.51},{"x":1685254771721,"y":13.58},{"x":1685255071473,"y":13.58},{"x":1685255371478,"y":13.58},{"x":1685255671578,"y":13.78},{"x":1685255971776,"y":13.54},{"x":1685256271512,"y":13.78},{"x":1685256571498,"y":13.76},{"x":1685256871502,"y":13.87},{"x":1685257171620,"y":13.87},{"x":1685257471509,"y":14.11},{"x":1685257771511,"y":14.36},{"x":1685258071508,"y":14.36},{"x":1685258371764,"y":14.39},{"x":1685258671517,"y":14.56},{"x":1685258971516,"y":14.56},{"x":1685259271515,"y":14.92},{"x":1685259571742,"y":14.92},{"x":1685259871562,"y":15.01},{"x":1685260171531,"y":15.01},{"x":1685260471534,"y":15.01},{"x":1685260771696,"y":14.85},{"x":1685261071539,"y":15.04},{"x":1685261371589,"y":15.04},{"x":1685261671538,"y":15.4},{"x":1685261971867,"y":15.59},{"x":1685262271550,"y":15.59},{"x":1685262571548,"y":15.59},{"x":1685262871567,"y":15.46},{"x":1685263171794,"y":15.73},{"x":1685263471562,"y":15.69},{"x":1685263771602,"y":15.85},{"x":1685264071565,"y":15.71},{"x":1685264371846,"y":15.71},{"x":1685264671596,"y":15.72},{"x":1685264971615,"y":15.73},{"x":1685265271570,"y":15.73},{"x":1685265571596,"y":15.65},{"x":1685265871585,"y":15.47},{"x":1685266171591,"y":15.47},{"x":1685266471584,"y":15.48},{"x":1685266771720,"y":15.72},{"x":1685267071581,"y":15.72},{"x":1685267371587,"y":15.9},{"x":1685267671638,"y":16.17},{"x":1685267971896,"y":16.17},{"x":1685268271589,"y":15.98},{"x":1685268571603,"y":16.37},{"x":1685268871604,"y":16.37},{"x":1685269171897,"y":16.65},{"x":1685269471607,"y":16.58},{"x":1685269771613,"y":16.58},{"x":1685270071662,"y":16.41},{"x":1685270371882,"y":16.41},{"x":1685270671617,"y":16.41},{"x":1685270971621,"y":16.28},{"x":1685271271686,"y":16.19},{"x":1685271571713,"y":16.22},{"x":1685271871621,"y":16.15},{"x":1685272171630,"y":16.22},{"x":1685272471630,"y":15.92},{"x":1685272771817,"y":15.96},{"x":1685273071635,"y":15.96},{"x":1685273371650,"y":16.12},{"x":1685273671673,"y":15.95},{"x":1685273971701,"y":16.31},{"x":1685274271656,"y":16.31},{"x":1685274571692,"y":16.32},{"x":1685274871686,"y":16.32},{"x":1685275171921,"y":16.73},{"x":1685275471665,"y":16.65},{"x":1685275771698,"y":16.73},{"x":1685276071659,"y":16.22},{"x":1685276371756,"y":16.22},{"x":1685276671662,"y":16.48},{"x":1685276971675,"y":15.89},{"x":1685277271661,"y":15.89},{"x":1685277571970,"y":15.63},{"x":1685277871714,"y":15.68},{"x":1685278171675,"y":15.63},{"x":1685278471667,"y":15.56},{"x":1685278771920,"y":15.65},{"x":1685279071689,"y":15.87},{"x":1685279371671,"y":15.87},{"x":1685279671675,"y":15.87},{"x":1685279972052,"y":15.71},{"x":1685280271668,"y":15.71},{"x":1685280571670,"y":16.04},{"x":1685280871676,"y":16.04},{"x":1685281671888,"y":15.97},{"x":1685284096032,"y":15.5},{"x":1685284395921,"y":15.5},{"x":1685284695933,"y":15.5},{"x":1685284995930,"y":15.47},{"x":1685285295935,"y":15.47},{"x":1685285595944,"y":15.8},{"x":1685285895939,"y":15.8},{"x":1685286195949,"y":15.51},{"x":1685286495951,"y":15.51},{"x":1685286796009,"y":15.36},{"x":1685287095965,"y":15.27},{"x":1685287395953,"y":15.27},{"x":1685287695970,"y":15.36},{"x":1685287995955,"y":15.36},{"x":1685288295961,"y":15.34},{"x":1685288595996,"y":14.97},{"x":1685288895968,"y":14.97},{"x":1685289196133,"y":14.79},{"x":1685289495999,"y":14.79},{"x":1685289795972,"y":14.69},{"x":1685290095973,"y":14.69},{"x":1685290395973,"y":14.69},{"x":1685290695981,"y":14.79},{"x":1685290996003,"y":14.79},{"x":1685291295989,"y":14.79},{"x":1685291595985,"y":14.77},{"x":1685291896008,"y":14.5},{"x":1685292196008,"y":14.5},{"x":1685292496041,"y":14.55},{"x":1685292796005,"y":14.47},{"x":1685293096013,"y":14.55},{"x":1685293396082,"y":14.49},{"x":1685293696011,"y":14.45},{"x":1685293996026,"y":14.65},{"x":1685294296016,"y":14.65},{"x":1685294596031,"y":14.43},{"x":1685294896026,"y":14.43},{"x":1685295196031,"y":14.42},{"x":1685295496032,"y":14.4},{"x":1685295796073,"y":14.53},{"x":1685296096031,"y":14.53},{"x":1685296396105,"y":14.32},{"x":1685296696030,"y":14.24},{"x":1685296996047,"y":14.24},{"x":1685297296080,"y":14.48},{"x":1685297596038,"y":14.4},{"x":1685297896041,"y":14.48},{"x":1685298196059,"y":14.08},{"x":1685298496041,"y":14.08},{"x":1685298796049,"y":14.33},{"x":1685299096058,"y":14},{"x":1685299396061,"y":13.59},{"x":1685299696048,"y":13.56},{"x":1685299996049,"y":13.56},{"x":1685300296111,"y":13.8},{"x":1685300596061,"y":13.71},{"x":1685300896068,"y":13.71},{"x":1685301196056,"y":13.49},{"x":1685301496064,"y":13.49},{"x":1685301796076,"y":13.49},{"x":1685302096103,"y":13.4},{"x":1685302396063,"y":13.46},{"x":1685302696077,"y":13.34},{"x":1685302996145,"y":13.04},{"x":1685303296067,"y":12.95},{"x":1685303596073,"y":13.04},{"x":1685303896072,"y":12.69},{"x":1685304196079,"y":12.67},{"x":1685304496103,"y":12.49},{"x":1685304796082,"y":12.49},{"x":1685305096071,"y":12.49},{"x":1685305396094,"y":12.49},{"x":1685305696124,"y":12.2},{"x":1685305996075,"y":12.14},{"x":1685306296121,"y":11.8},{"x":1685306596072,"y":11.8},{"x":1685306896081,"y":11.8},{"x":1685307196124,"y":11.34},{"x":1685307496091,"y":11.34},{"x":1685307797175,"y":11.28},{"x":1685308096131,"y":11.3},{"x":1685308396095,"y":11.28},{"x":1685308696095,"y":11.3},{"x":1685308996098,"y":11.22},{"x":1685309296119,"y":11},{"x":1685309596104,"y":11},{"x":1685309896135,"y":10.5},{"x":1685310196123,"y":10.5},{"x":1685310496134,"y":10.5},{"x":1685310796104,"y":10.45},{"x":1685311096115,"y":10.45},{"x":1685311396137,"y":10.24},{"x":1685311696121,"y":10.24},{"x":1685311996202,"y":10.21},{"x":1685312296125,"y":10.21},{"x":1685312596146,"y":10.21},{"x":1685312896148,"y":9.93},{"x":1685313196132,"y":10.07},{"x":1685313496203,"y":9.89},{"x":1685313796150,"y":9.83},{"x":1685314096147,"y":9.75},{"x":1685314396195,"y":9.81},{"x":1685314696202,"y":9.81},{"x":1685314996169,"y":9.68},{"x":1685315296183,"y":9.65},{"x":1685315596155,"y":9.37},{"x":1685315896207,"y":9.43},{"x":1685316196167,"y":9.43},{"x":1685316496181,"y":9.32},{"x":1685316796216,"y":9.22},{"x":1685317096164,"y":9.22},{"x":1685317396213,"y":8.84},{"x":1685317696170,"y":8.76},{"x":1685317996185,"y":8.81},{"x":1685318296172,"y":8.72},{"x":1685318596191,"y":8.81},{"x":1685318896205,"y":8.99},{"x":1685319196165,"y":8.99},{"x":1685319496187,"y":8.9},{"x":1685319796169,"y":8.9},{"x":1685320096204,"y":8.99},{"x":1685320396170,"y":8.7},{"x":1685320696174,"y":8.65},{"x":1685320996175,"y":8.65},{"x":1685321296205,"y":8.41},{"x":1685321596177,"y":8.41},{"x":1685321896203,"y":8.41},{"x":1685322196246,"y":8.09},{"x":1685322496225,"y":7.88},{"x":1685322796181,"y":7.88},{"x":1685323096176,"y":7.73},{"x":1685323396175,"y":7.73},{"x":1685323696184,"y":7.67},{"x":1685323996186,"y":7.67},{"x":1685324296221,"y":7.83},{"x":1685324596190,"y":7.74},{"x":1685324896222,"y":7.83},{"x":1685325196203,"y":7.74},{"x":1685325496188,"y":7.32},{"x":1685325796536,"y":7.32},{"x":1685326096185,"y":7.32},{"x":1685326396231,"y":7.41},{"x":1685326696191,"y":7.41},{"x":1685326996194,"y":7.41},{"x":1685327296195,"y":7.29},{"x":1685327596190,"y":7.3},{"x":1685327896227,"y":7.33},{"x":1685328196279,"y":7.33},{"x":1685328496276,"y":7.33},{"x":1685328796240,"y":7.2},{"x":1685329096191,"y":7.2},{"x":1685329396192,"y":7.11},{"x":1685329696248,"y":7.2},{"x":1685329996247,"y":7.2},{"x":1685330296206,"y":7.2},{"x":1685330596222,"y":7.11},{"x":1685330896241,"y":7.37},{"x":1685331196223,"y":7.37},{"x":1685331496227,"y":7.37},{"x":1685331796287,"y":7.54},{"x":1685332096241,"y":7.54},{"x":1685332396262,"y":7.25},{"x":1685332696288,"y":7.34},{"x":1685332996282,"y":7.25},{"x":1685333296250,"y":7.34},{"x":1685333596314,"y":7.3},{"x":1685333896248,"y":7.3},{"x":1685334196250,"y":7.22},{"x":1685334496287,"y":7.3},{"x":1685334796262,"y":7.3},{"x":1685335096310,"y":7.34},{"x":1685335396322,"y":7.34},{"x":1685335696328,"y":7.35},{"x":1685335996277,"y":7.35},{"x":1685336296341,"y":7.46},{"x":1685336596305,"y":7.46},{"x":1685336896288,"y":7.46},{"x":1685337196337,"y":7.77},{"x":1685337496307,"y":7.68},{"x":1685337796344,"y":7.77},{"x":1685338096310,"y":7.7},{"x":1685338396309,"y":7.7},{"x":1685338696313,"y":7.87},{"x":1685338996338,"y":7.91},{"x":1685339296305,"y":8.24},{"x":1685339596306,"y":8.24},{"x":1685339896363,"y":8.87},{"x":1685340196325,"y":8.81},{"x":1685340496328,"y":8.87},{"x":1685340796324,"y":8.93},{"x":1685341096323,"y":8.93},{"x":1685341396403,"y":9.54},{"x":1685341696331,"y":9.46},{"x":1685341996329,"y":9.48},{"x":1685342296334,"y":9.53},{"x":1685342596385,"y":9.94},{"x":1685342896330,"y":9.94},{"x":1685343196338,"y":10.15},{"x":1685343496342,"y":10.74},{"x":1685343796354,"y":10.74},{"x":1685344096339,"y":11.17},{"x":1685344396346,"y":11.17},{"x":1685344697407,"y":11.29},{"x":1685344996353,"y":11.26},{"x":1685345296424,"y":11.74},{"x":1685345596406,"y":11.65},{"x":1685345896351,"y":11.65},{"x":1685346196416,"y":12.07},{"x":1685346496410,"y":12.16},{"x":1685346796378,"y":12.07},{"x":1685347096406,"y":12.03},{"x":1685347396359,"y":12.03},{"x":1685347696378,"y":12.03},{"x":1685347996394,"y":12.1},{"x":1685348296366,"y":12.1},{"x":1685348596360,"y":12.02},{"x":1685348896369,"y":12.44},{"x":1685349196480,"y":12.49},{"x":1685349496365,"y":12.49},{"x":1685349796376,"y":12.49},{"x":1685350096394,"y":12.97},{"x":1685350396369,"y":12.97},{"x":1685350696451,"y":13.05},{"x":1685350996421,"y":13.19},{"x":1685351296370,"y":13.05},{"x":1685351596436,"y":13.25},{"x":1685351896375,"y":13.25},{"x":1685352196381,"y":13.25},{"x":1685352496379,"y":13.28},{"x":1685352796390,"y":13.28},{"x":1685353096503,"y":13.97},{"x":1685353396412,"y":13.97},{"x":1685353696392,"y":13.97},{"x":1685353996429,"y":14.15},{"x":1685354296437,"y":14.15},{"x":1685354596450,"y":14.15},{"x":1685354896393,"y":14.3},{"x":1685355196401,"y":14.3},{"x":1685355496440,"y":14.36},{"x":1685355796402,"y":14.36},{"x":1685356096449,"y":14.32},{"x":1685356396391,"y":14.24},{"x":1685356696401,"y":14.32},{"x":1685356996401,"y":14.61},{"x":1685357296408,"y":14.61},{"x":1685357596403,"y":15.01},{"x":1685357896429,"y":15.59},{"x":1685358196393,"y":15.59},{"x":1685358496468,"y":15.59},{"x":1685358796424,"y":16},{"x":1685359096400,"y":16},{"x":1685359396448,"y":16.11},{"x":1685359696410,"y":16.08},{"x":1685359996404,"y":16.08},{"x":1685360296411,"y":16.35},{"x":1685360596442,"y":16.35},{"x":1685360896460,"y":16.44},{"x":1685361196442,"y":16.44},{"x":1685361496409,"y":16.44},{"x":1685361796427,"y":16.52},{"x":1685362096416,"y":16.62},{"x":1685362396413,"y":16.67},{"x":1685362696411,"y":16.68},{"x":1685362996461,"y":16.79},{"x":1685363296411,"y":16.85},{"x":1685363596420,"y":16.79},{"x":1685363896467,"y":16.76},{"x":1685364196435,"y":16.76},{"x":1685364496434,"y":16.76},{"x":1685364796430,"y":16.68},{"x":1685365096423,"y":17.1},{"x":1685365396432,"y":17.1},{"x":1685365696497,"y":17.46},{"x":1685365996459,"y":17.44},{"x":1685366296423,"y":17.46},{"x":1685366596445,"y":17.44},{"x":1685366896437,"y":17.38},{"x":1685367196433,"y":17.38},{"x":1685367496432,"y":17.38},{"x":1685367796435,"y":17.27},{"x":1685368096426,"y":17.27},{"x":1685368396429,"y":17.26},{"x":1685368696436,"y":17.26},{"x":1685368996438,"y":17.44},{"x":1685369296428,"y":17.32},{"x":1685369596501,"y":17.5},{"x":1685369896441,"y":17.42},{"x":1685370196509,"y":17.5},{"x":1685370496485,"y":17.7},{"x":1685370796502,"y":17.7},{"x":1685371096455,"y":17.7},{"x":1685371396510,"y":17.39},{"x":1685371696485,"y":17.39},{"x":1685371996502,"y":17.64},{"x":1685372296476,"y":17.31},{"x":1685372596474,"y":17.78},{"x":1685372896482,"y":17.78},{"x":1685373196484,"y":17.78},{"x":1685373496572,"y":17.86},{"x":1685373796514,"y":17.78},{"x":1685374096510,"y":17.81},{"x":1685374396544,"y":17.86},{"x":1685374696519,"y":17.78},{"x":1685374996566,"y":17.78},{"x":1685375296542,"y":17.89},{"x":1685375596519,"y":17.89},{"x":1685375896531,"y":17.89},{"x":1685376196570,"y":17.89},{"x":1685376496581,"y":18.04},{"x":1685376796589,"y":18.04},{"x":1685377096547,"y":17.74},{"x":1685377396613,"y":17.74},{"x":1685377696596,"y":17.6},{"x":1685377996542,"y":17.51},{"x":1685378296565,"y":17.51},{"x":1685378596624,"y":17.51},{"x":1685378896627,"y":17.42},{"x":1685379196643,"y":17.2},{"x":1685379496586,"y":17.42},{"x":1685379796637,"y":17.09},{"x":1685380096596,"y":17.09},{"x":1685380396635,"y":17.11},{"x":1685380696607,"y":17.04},{"x":1685380996713,"y":17.08},{"x":1685381296598,"y":16.99},{"x":1685381596615,"y":17.08},{"x":1685381896608,"y":17.03},{"x":1685382196647,"y":17.03},{"x":1685382496621,"y":16.09},{"x":1685382796622,"y":16.25},{"x":1685383096636,"y":16.25},{"x":1685383396656,"y":16.25},{"x":1685383696677,"y":16.1},{"x":1685383996640,"y":16.09},{"x":1685384296634,"y":16.09},{"x":1685384596702,"y":16.09},{"x":1685384896755,"y":15.72},{"x":1685385196657,"y":15.7},{"x":1685385496648,"y":15.72},{"x":1685385796721,"y":14.94},{"x":1685386096661,"y":14.89},{"x":1685386396764,"y":14.48},{"x":1685386696644,"y":14.48},{"x":1685386996711,"y":14.39},{"x":1685387296665,"y":14.47},{"x":1685387596687,"y":14.47},{"x":1685387896719,"y":14.45},{"x":1685388196746,"y":14.37},{"x":1685388496677,"y":14.36},{"x":1685388796728,"y":14.16},{"x":1685389096728,"y":14.95},{"x":1685389396772,"y":15.89},{"x":1685389696700,"y":15.8},{"x":1685389996694,"y":15.8},{"x":1685390296741,"y":13.52},{"x":1685390596769,"y":13.52},{"x":1685390896706,"y":13.52},{"x":1685391196708,"y":12.38},{"x":1685391496778,"y":12.52},{"x":1685391796848,"y":12.52},{"x":1685392096805,"y":12.37},{"x":1685392396723,"y":12.01},{"x":1685392696723,"y":12.01},{"x":1685392996799,"y":11.33},{"x":1685393296731,"y":11.58},{"x":1685393596725,"y":11.33},{"x":1685393896759,"y":11.64},{"x":1685394196778,"y":11.64},{"x":1685394496727,"y":11.63},{"x":1685394796838,"y":11},{"x":1685395096733,"y":10.92},{"x":1685395396756,"y":10.84},{"x":1685395696744,"y":10.81},{"x":1685395996738,"y":10.81},{"x":1685396296745,"y":10.81},{"x":1685396596863,"y":9.92},{"x":1685396896748,"y":9.92},{"x":1685397196744,"y":9.92},{"x":1685397496752,"y":9.84},{"x":1685397797031,"y":9.29},{"x":1685398096745,"y":9.59},{"x":1685398396778,"y":9.29},{"x":1685398696753,"y":9.67},{"x":1685398996882,"y":9.8},{"x":1685399296749,"y":9.67},{"x":1685399596872,"y":9.64},{"x":1685399896856,"y":9.29},{"x":1685400196853,"y":9.29},{"x":1685400496758,"y":9.29},{"x":1685400796806,"y":8.88},{"x":1685401096749,"y":8.88},{"x":1685401396853,"y":8.88},{"x":1685401696823,"y":8.87},{"x":1685401996749,"y":8.93},{"x":1685402296834,"y":8.83},{"x":1685402596862,"y":8.83},{"x":1685402896766,"y":8.83},{"x":1685403196764,"y":8.69},{"x":1685403496778,"y":8.79},{"x":1685403796902,"y":8.76},{"x":1685404096775,"y":8.76},{"x":1685404396829,"y":8.45},{"x":1685404696790,"y":8.45},{"x":1685404996816,"y":8.36},{"x":1685405296883,"y":8.71},{"x":1685405596870,"y":8.7},{"x":1685405896793,"y":8.63},{"x":1685406196983,"y":8.7},{"x":1685406496794,"y":8.47},{"x":1685406796799,"y":8.47},{"x":1685407096806,"y":8.41},{"x":1685407396889,"y":8.27},{"x":1685407696814,"y":8.19},{"x":1685407996818,"y":8.27},{"x":1685408296823,"y":8.19},{"x":1685408596913,"y":8.19},{"x":1685408896867,"y":7.82},{"x":1685409196827,"y":7.82},{"x":1685409496885,"y":7.78},{"x":1685409796923,"y":7.69},{"x":1685410096833,"y":7.69},{"x":1685410396863,"y":7.68},{"x":1685410696853,"y":7.69},{"x":1685410996931,"y":7.59},{"x":1685411296850,"y":7.59},{"x":1685411596860,"y":7.59},{"x":1685411896863,"y":7.34},{"x":1685412197065,"y":7.41},{"x":1685412496865,"y":7.34},{"x":1685412796871,"y":7.34},{"x":1685413096914,"y":7.41},{"x":1685413396986,"y":7.41},{"x":1685413696881,"y":7.41},{"x":1685413996886,"y":7.35},{"x":1685414296923,"y":7.82},{"x":1685414597013,"y":7.95},{"x":1685414896976,"y":7.95},{"x":1685415196895,"y":7.95},{"x":1685415496889,"y":7.95},{"x":1685415796967,"y":8.17},{"x":1685416096899,"y":8.17},{"x":1685416396952,"y":8.17},{"x":1685416696900,"y":8.09},{"x":1685416997056,"y":8.23},{"x":1685417296914,"y":8.21},{"x":1685417596918,"y":8.23},{"x":1685417896941,"y":8.11},{"x":1685418197072,"y":8.11},{"x":1685418496972,"y":7.78},{"x":1685418796976,"y":7.78},{"x":1685419096917,"y":7.78},{"x":1685419397122,"y":7.76},{"x":1685419696925,"y":7.7},{"x":1685419996981,"y":7.76},{"x":1685420296927,"y":7.98},{"x":1685420597159,"y":7.68},{"x":1685420896981,"y":8.25},{"x":1685421196938,"y":8.25},{"x":1685421496968,"y":9.25},{"x":1685421797058,"y":8.95},{"x":1685422096935,"y":8.95},{"x":1685422397004,"y":9.27},{"x":1685422696956,"y":9.27},{"x":1685422997188,"y":9.29},{"x":1685423296955,"y":9.29},{"x":1685423597001,"y":9.11},{"x":1685423896956,"y":9.02},{"x":1685424197012,"y":9.02},{"x":1685424497000,"y":9.11},{"x":1685424796971,"y":9.02},{"x":1685425096964,"y":10.04},{"x":1685425397109,"y":10.04},{"x":1685425696964,"y":10.02},{"x":1685425996974,"y":9.99},{"x":1685426296965,"y":10.2},{"x":1685426597100,"y":10.28},{"x":1685426896989,"y":10.33},{"x":1685427196988,"y":10.33},{"x":1685427497031,"y":10.45},{"x":1685427797156,"y":10.38},{"x":1685428097083,"y":10.94},{"x":1685428396991,"y":10.94},{"x":1685428696996,"y":10.82},{"x":1685428997105,"y":11.01},{"x":1685429296992,"y":11.01},{"x":1685429597030,"y":11.01},{"x":1685429896994,"y":11.04},{"x":1685430197076,"y":11.04},{"x":1685430497010,"y":11.39},{"x":1685430796999,"y":11.6},{"x":1685431097007,"y":11.55},{"x":1685431397249,"y":11.81},{"x":1685431697002,"y":11.81},{"x":1685431997013,"y":11.81},{"x":1685432297009,"y":11.82},{"x":1685432597030,"y":11.82},{"x":1685432897132,"y":12.15},{"x":1685433197016,"y":12.07},{"x":1685433497009,"y":12.15},{"x":1685433797139,"y":12.16},{"x":1685434097016,"y":12.19},{"x":1685434397064,"y":12.22},{"x":1685434697027,"y":12.14},{"x":1685434997238,"y":12.14},{"x":1685435297077,"y":12.32},{"x":1685435597014,"y":12.33},{"x":1685435897071,"y":12.41},{"x":1685436197195,"y":12.35},{"x":1685436497013,"y":12.35},{"x":1685436797015,"y":12.32},{"x":1685437097050,"y":12.32},{"x":1685437397237,"y":12.33},{"x":1685437697030,"y":12.33},{"x":1685437997069,"y":12.27},{"x":1685438297034,"y":12.19},{"x":1685438597203,"y":12.17},{"x":1685438897033,"y":12.34},{"x":1685439197064,"y":12.31},{"x":1685439497033,"y":12.32},{"x":1685439797107,"y":12.31},{"x":1685440097051,"y":13.11},{"x":1685440397038,"y":13.21},{"x":1685440697073,"y":13.37},{"x":1685440997179,"y":13.19},{"x":1685441297048,"y":13.28},{"x":1685441597041,"y":13.19},{"x":1685441897039,"y":13.29},{"x":1685442197094,"y":13.29},{"x":1685442497030,"y":13.33},{"x":1685442797045,"y":13.33},{"x":1685443097030,"y":13.2},{"x":1685443397349,"y":13.31},{"x":1685443697027,"y":13.31},{"x":1685443997092,"y":13.23},{"x":1685444297033,"y":13.77},{"x":1685444597073,"y":13.68},{"x":1685444897078,"y":16.19},{"x":1685445197034,"y":16.19},{"x":1685445497068,"y":16.19},{"x":1685445797209,"y":16.19},{"x":1685446097058,"y":16.19},{"x":1685446397051,"y":17.22},{"x":1685446697059,"y":17.22},{"x":1685446997166,"y":18.41},{"x":1685447297115,"y":18.41},{"x":1685447597112,"y":18.41},{"x":1685447897089,"y":18.41},{"x":1685448197159,"y":12.74},{"x":1685448497098,"y":12.72},{"x":1685448797127,"y":12.89},{"x":1685449097105,"y":12.97},{"x":1685449397373,"y":13.15},{"x":1685449697109,"y":13.03},{"x":1685449997136,"y":13.06},{"x":1685450297128,"y":13.06},{"x":1685450597387,"y":13.06},{"x":1685450897183,"y":13.21},{"x":1685451197144,"y":13.21},{"x":1685451497142,"y":13.33},{"x":1685451797185,"y":13.33},{"x":1685452097148,"y":13.57},{"x":1685452397249,"y":13.64},{"x":1685452697161,"y":13.64},{"x":1685452997474,"y":13.64},{"x":1685453297206,"y":13.97},{"x":1685453597173,"y":13.69},{"x":1685453897183,"y":13.94},{"x":1685454197215,"y":13.94},{"x":1685454497192,"y":14.16},{"x":1685454797260,"y":14.48},{"x":1685455097202,"y":14.67},{"x":1685455397476,"y":14.67},{"x":1685455697209,"y":14.86},{"x":1685455997240,"y":15.03},{"x":1685456297262,"y":15.18},{"x":1685456597249,"y":15.18},{"x":1685456897228,"y":15.09},{"x":1685457197269,"y":15.55},{"x":1685457497236,"y":15.55},{"x":1685457797465,"y":15.55},{"x":1685458097286,"y":16.03},{"x":1685458397242,"y":16.03},{"x":1685458697267,"y":16.03},{"x":1685458997286,"y":15.84},{"x":1685459297248,"y":15.84},{"x":1685459597268,"y":16.22},{"x":1685459897263,"y":16.22},{"x":1685460197357,"y":16.94},{"x":1685460497301,"y":16.94},{"x":1685460797266,"y":16.94},{"x":1685461097305,"y":16.95},{"x":1685461397544,"y":17.05},{"x":1685461697280,"y":16.95},{"x":1685461997291,"y":16.97},{"x":1685462297287,"y":16.97},{"x":1685462597465,"y":17.35},{"x":1685462897303,"y":17.35},{"x":1685463197366,"y":17.2},{"x":1685463737229,"y":17.2},{"x":1685464037277,"y":17.14},{"x":1685464337245,"y":17.14},{"x":1685464637256,"y":17.03},{"x":1685464937262,"y":17.14},{"x":1685465237316,"y":17.08},{"x":1685465537294,"y":17.08},{"x":1685465837334,"y":17.31},{"x":1685466137337,"y":17.31},{"x":1685466437310,"y":17.03},{"x":1685466737354,"y":17.04},{"x":1685467037407,"y":16.96},{"x":1685467337326,"y":17.16},{"x":1685467637328,"y":17.13},{"x":1685467937333,"y":16.81},{"x":1685468237339,"y":16.48},{"x":1685468537360,"y":16.48},{"x":1685468837368,"y":16.47},{"x":1685469137413,"y":15.9},{"x":1685469437370,"y":16.04},{"x":1685469737372,"y":15.9},{"x":1685470037427,"y":15.82},{"x":1685470337392,"y":15.82},{"x":1685470637406,"y":15.82},{"x":1685470937407,"y":15.69},{"x":1685471237416,"y":15.83},{"x":1685471537421,"y":15.83},{"x":1685471837423,"y":15.95},{"x":1685472137555,"y":15.16},{"x":1685472437434,"y":15.08},{"x":1685472737439,"y":14.87},{"x":1685473037727,"y":14.79},{"x":1685473337523,"y":15.1},{"x":1685473637452,"y":14.79},{"x":1685473937500,"y":14.51},{"x":1685474237504,"y":14.29},{"x":1685474537449,"y":14.29},{"x":1685474837471,"y":14.21},{"x":1685475137479,"y":14.06},{"x":1685475437511,"y":13.27},{"x":1685475737497,"y":13.27},{"x":1685476037496,"y":13.19},{"x":1685476337572,"y":13.61},{"x":1685476637511,"y":13.49},{"x":1685476937513,"y":13.47},{"x":1685477237528,"y":13.42},{"x":1685477537526,"y":13.44},{"x":1685477837530,"y":13.44},{"x":1685478137582,"y":13.03},{"x":1685478437532,"y":13.14},{"x":1685478737565,"y":12.83},{"x":1685479037545,"y":12.91},{"x":1685479337555,"y":12.59},{"x":1685479637566,"y":12.56},{"x":1685479937595,"y":12.5},{"x":1685480237565,"y":12.61},{"x":1685480537635,"y":12.43},{"x":1685480837564,"y":12.43},{"x":1685481137578,"y":12.27},{"x":1685481437654,"y":12.32},{"x":1685481737583,"y":12.24},{"x":1685482037634,"y":12.13},{"x":1685482337596,"y":12.13},{"x":1685482637588,"y":12.04},{"x":1685482937605,"y":11.88},{"x":1685483237606,"y":11.88},{"x":1685483537617,"y":11.87},{"x":1685483837694,"y":11.87},{"x":1685484137652,"y":11.83},{"x":1685484437620,"y":11.55},{"x":1685484737629,"y":11.83},{"x":1685485037682,"y":11.43},{"x":1685485337673,"y":11.43},{"x":1685485637637,"y":11.43},{"x":1685485937698,"y":11.4},{"x":1685486237666,"y":11.4},{"x":1685486537695,"y":11.4},{"x":1685486837701,"y":11.34},{"x":1685487137670,"y":11.34},{"x":1685487437690,"y":11.34},{"x":1685487737711,"y":11.08},{"x":1685488037671,"y":11.08},{"x":1685488337728,"y":11.08},{"x":1685488637752,"y":11.06},{"x":1685488937679,"y":11.06},{"x":1685489237735,"y":11.04},{"x":1685489537691,"y":10.96},{"x":1685489837848,"y":11.05},{"x":1685490137701,"y":11.05},{"x":1685490437705,"y":10.95},{"x":1685490737730,"y":10.86},{"x":1685491037756,"y":10.8},{"x":1685491337708,"y":10.8},{"x":1685491637705,"y":10.8},{"x":1685491937711,"y":10.71},{"x":1685492237764,"y":10.8},{"x":1685492537769,"y":10.8},{"x":1685492837718,"y":10.8},{"x":1685493137753,"y":10.8},{"x":1685493437930,"y":10.87},{"x":1685493737724,"y":10.87},{"x":1685494037777,"y":10.61},{"x":1685494337747,"y":10.52},{"x":1685494637852,"y":10.61},{"x":1685494937737,"y":10.61},{"x":1685495237777,"y":10.63},{"x":1685495537775,"y":10.62},{"x":1685495837812,"y":10.51},{"x":1685496137755,"y":10.43},{"x":1685496437796,"y":10.49},{"x":1685496737809,"y":10.49},{"x":1685497037761,"y":10.49},{"x":1685497337761,"y":10.23},{"x":1685497637765,"y":10.23},{"x":1685497937814,"y":10.31},{"x":1685498237807,"y":10.31},{"x":1685498537788,"y":10.31},{"x":1685498837775,"y":10.23},{"x":1685499137789,"y":10.23},{"x":1685499437805,"y":10.23},{"x":1685499737817,"y":10.31},{"x":1685500037780,"y":10.31},{"x":1685500337844,"y":10.14},{"x":1685500637891,"y":10.14},{"x":1685500937793,"y":10.14},{"x":1685501237793,"y":10.14},{"x":1685501537807,"y":10.05},{"x":1685501837925,"y":10.05},{"x":1685502137801,"y":10.05},{"x":1685502437811,"y":9.97},{"x":1685502737895,"y":10.14},{"x":1685503037900,"y":10.16},{"x":1685503337808,"y":10.16},{"x":1685503637807,"y":10.08},{"x":1685503937812,"y":9.94},{"x":1685504237850,"y":9.94},{"x":1685504537822,"y":9.99},{"x":1685504837872,"y":9.96},{"x":1685505137866,"y":9.98},{"x":1685505438032,"y":9.98},{"x":1685505737834,"y":9.98},{"x":1685506037879,"y":9.81},{"x":1685506337861,"y":9.81},{"x":1685506637914,"y":9.81},{"x":1685506937872,"y":9.81},{"x":1685507237889,"y":9.81},{"x":1685507537838,"y":9.81},{"x":1685507837888,"y":9.81},{"x":1685508137887,"y":9.82},{"x":1685508437832,"y":9.73},{"x":1685508737867,"y":9.82},{"x":1685509037974,"y":9.62},{"x":1685509337857,"y":9.82},{"x":1685509637848,"y":9.62},{"x":1685509937889,"y":9.62},{"x":1685510237947,"y":9.62},{"x":1685510537889,"y":9.65},{"x":1685510837852,"y":9.65},{"x":1685511137855,"y":9.65},{"x":1685511437965,"y":9.57},{"x":1685511737859,"y":9.57},{"x":1685512037848,"y":9.54},{"x":1685512337852,"y":9.55},{"x":1685512638025,"y":9.58},{"x":1685512937857,"y":9.57},{"x":1685513237850,"y":9.58},{"x":1685513537848,"y":9.57},{"x":1685513837893,"y":9.57},{"x":1685514137857,"y":9.75},{"x":1685514437855,"y":9.75},{"x":1685514737977,"y":9.84},{"x":1685515037889,"y":9.84},{"x":1685515337874,"y":9.84},{"x":1685515637865,"y":9.84},{"x":1685515937961,"y":9.84},{"x":1685516238059,"y":9.84},{"x":1685516537872,"y":9.75},{"x":1685516837969,"y":10.01},{"x":1685517137902,"y":10.01},{"x":1685517437997,"y":10.01},{"x":1685517737887,"y":10.03},{"x":1685518037974,"y":10.03},{"x":1685518337895,"y":9.92},{"x":1685518637932,"y":9.92},{"x":1685518937904,"y":9.96},{"x":1685519238002,"y":10.1},{"x":1685519537959,"y":10.1},{"x":1685519837988,"y":10.1},{"x":1685520137912,"y":10.1},{"x":1685520437906,"y":10.37},{"x":1685520737913,"y":10.33},{"x":1685521038006,"y":10.33},{"x":1685521337908,"y":10.33},{"x":1685521637915,"y":10.33},{"x":1685521937963,"y":10.25},{"x":1685522238080,"y":10.54},{"x":1685522537924,"y":10.54},{"x":1685522837919,"y":10.54},{"x":1685523137944,"y":10.5},{"x":1685523438045,"y":10.6},{"x":1685523737930,"y":10.58},{"x":1685524037929,"y":10.52},{"x":1685524337974,"y":10.82},{"x":1685524638007,"y":10.82},{"x":1685524937934,"y":10.82},{"x":1685525237935,"y":10.95},{"x":1685525537943,"y":10.99},{"x":1685525838078,"y":11.08},{"x":1685526137951,"y":11.08},{"x":1685526437950,"y":10.99},{"x":1685526737944,"y":11.07},{"x":1685527038721,"y":11.07},{"x":1685527338012,"y":11.11},{"x":1685527637961,"y":11.11},{"x":1685527937952,"y":11.07},{"x":1685528238080,"y":11.16},{"x":1685528537978,"y":11.03},{"x":1685528837960,"y":11.12},{"x":1685529137967,"y":11.08},{"x":1685529438131,"y":11.61},{"x":1685529738016,"y":11.61},{"x":1685530037967,"y":11.61},{"x":1685530337963,"y":11.61},{"x":1685530638067,"y":11.61},{"x":1685530937995,"y":11.61},{"x":1685531237967,"y":11.61},{"x":1685531537979,"y":12.07},{"x":1685531838029,"y":11.73},{"x":1685532137972,"y":11.72},{"x":1685532437974,"y":11.73},{"x":1685532738070,"y":11.43},{"x":1685533038022,"y":11.92},{"x":1685533338038,"y":16.07},{"x":1685533637982,"y":16.07},{"x":1685533938045,"y":16.07},{"x":1685534238057,"y":16.07},{"x":1685534537980,"y":16.07},{"x":1685534838036,"y":12.17},{"x":1685535137993,"y":12.17},{"x":1685535438136,"y":12.17},{"x":1685535737984,"y":12.17},{"x":1685536037986,"y":12.17},{"x":1685536337985,"y":12.17},{"x":1685536638024,"y":11.9},{"x":1685536938025,"y":15.91},{"x":1685537237999,"y":15.91},{"x":1685537538002,"y":15.91},{"x":1685537838106,"y":15.91},{"x":1685538138007,"y":15.82},{"x":1685538438058,"y":13.28},{"x":1685538738048,"y":13.28},{"x":1685539038104,"y":13.28},{"x":1685539338007,"y":13.2},{"x":1685539638019,"y":13.2},{"x":1685539938003,"y":13.33},{"x":1685540238052,"y":13.2},{"x":1685540538039,"y":16.75},{"x":1685540838017,"y":16.67},{"x":1685541138064,"y":16.75},{"x":1685541438054,"y":16.67},{"x":1685541738229,"y":17.3},{"x":1685542038012,"y":17.22},{"x":1685542338042,"y":17.3},{"x":1685542638126,"y":18.38},{"x":1685542938012,"y":18.38},{"x":1685543238056,"y":18.97},{"x":1685543538110,"y":17.86},{"x":1685543838052,"y":17.86},{"x":1685544138125,"y":17.78},{"x":1685544438027,"y":17.78},{"x":1685544738110,"y":14.96},{"x":1685545038075,"y":14.94},{"x":1685545338027,"y":14.94},{"x":1685545638075,"y":15.63},{"x":1685545938022,"y":15.63},{"x":1685546238174,"y":16},{"x":1685546538079,"y":15.83},{"x":1685546838020,"y":15.81},{"x":1685547138129,"y":14.9},{"x":1685547438095,"y":14.83},{"x":1685547738125,"y":14.9},{"x":1685548038046,"y":14.83},{"x":1685548338056,"y":14.9},{"x":1685548638087,"y":14.85},{"x":1685548938038,"y":14.85},{"x":1685549238040,"y":14.85},{"x":1685549538033,"y":14.97},{"x":1685549838168,"y":14.97},{"x":1685550138087,"y":15.03},{"x":1685550438030,"y":14.97},{"x":1685550738120,"y":14.3},{"x":1685551038139,"y":14.3},{"x":1685551338037,"y":13.6},{"x":1685551638033,"y":13.49},{"x":1685551938041,"y":13.47},{"x":1685552238174,"y":13.61},{"x":1685552538043,"y":13.61},{"x":1685552838043,"y":13.52},{"x":1685553138067,"y":13.52},{"x":1685553438546,"y":13.6},{"x":1685553738055,"y":13.52},{"x":1685554038140,"y":13.59},{"x":1685554338045,"y":13.51},{"x":1685554638134,"y":13.16},{"x":1685554938070,"y":13.16},{"x":1685555238057,"y":13.18},{"x":1685555538064,"y":13.07},{"x":1685555838093,"y":13.07},{"x":1685556138085,"y":13.14},{"x":1685556438188,"y":13.11},{"x":1685556738092,"y":13.12},{"x":1685557038192,"y":13.01},{"x":1685557338095,"y":13.01},{"x":1685557638182,"y":12.89},{"x":1685557938150,"y":12.8},{"x":1685558238172,"y":12.61},{"x":1685558538110,"y":12.8},{"x":1685558838201,"y":12.58},{"x":1685559138123,"y":12.58},{"x":1685559438206,"y":12.59},{"x":1685559738189,"y":12.57},{"x":1685560038129,"y":12.57},{"x":1685560338155,"y":12.57},{"x":1685560638404,"y":12.29},{"x":1685560938173,"y":12.29},{"x":1685561238169,"y":12.29},{"x":1685561538183,"y":12.17},{"x":1685561838237,"y":12.17},{"x":1685562138233,"y":12.21},{"x":1685562438249,"y":12.18},{"x":1685562738211,"y":12.18},{"x":1685563038228,"y":12.09},{"x":1685563338214,"y":12.07},{"x":1685563638217,"y":12.07},{"x":1685563938231,"y":11.8},{"x":1685564238362,"y":11.86},{"x":1685564538381,"y":11.83},{"x":1685564838277,"y":11.83},{"x":1685565138242,"y":11.79},{"x":1685565438280,"y":11.7},{"x":1685565738251,"y":11.53},{"x":1685566038259,"y":11.53},{"x":1685566338265,"y":11.53},{"x":1685566638303,"y":11.43},{"x":1685566938268,"y":11.43},{"x":1685567238323,"y":11.33},{"x":1685567538343,"y":11.39},{"x":1685567838304,"y":11.31},{"x":1685568138281,"y":11.39},{"x":1685568438336,"y":11.31},{"x":1685568738284,"y":11.31},{"x":1685569038329,"y":11.31},{"x":1685569338310,"y":11.25},{"x":1685569638302,"y":11.25},{"x":1685569938300,"y":11.25},{"x":1685570238298,"y":10.97},{"x":1685570538297,"y":10.97},{"x":1685570838294,"y":10.97},{"x":1685571138323,"y":10.78},{"x":1685571438384,"y":10.78},{"x":1685571738313,"y":10.78},{"x":1685572038419,"y":10.8},{"x":1685572338315,"y":10.8},{"x":1685572638324,"y":10.8},{"x":1685572938327,"y":10.44},{"x":1685573238329,"y":10.44},{"x":1685573538333,"y":10.44},{"x":1685573838369,"y":10.44},{"x":1685574138332,"y":10.44},{"x":1685574438328,"y":10.43},{"x":1685574738335,"y":10.43},{"x":1685575038372,"y":10.42},{"x":1685575338334,"y":10.43},{"x":1685575638376,"y":10.44},{"x":1685575938389,"y":10.48},{"x":1685576238419,"y":10.39},{"x":1685576538344,"y":10.11},{"x":1685576838359,"y":10.2},{"x":1685577138380,"y":10.29},{"x":1685577438375,"y":10.29},{"x":1685577738413,"y":10.3},{"x":1685578038361,"y":10.29},{"x":1685578338371,"y":10.3},{"x":1685578638503,"y":10.18},{"x":1685578938376,"y":10.18},{"x":1685579238383,"y":10.09},{"x":1685579538380,"y":10.17},{"x":1685579838438,"y":10.13},{"x":1685580138376,"y":9.88},{"x":1685580438398,"y":9.88},{"x":1685580738405,"y":9.94},{"x":1685581038616,"y":9.94},{"x":1685581338395,"y":9.94},{"x":1685581638435,"y":9.94},{"x":1685581938409,"y":9.88},{"x":1685582238480,"y":9.86},{"x":1685582538402,"y":9.86},{"x":1685582838405,"y":9.86},{"x":1685583138415,"y":9.86},{"x":1685583438613,"y":9.86},{"x":1685583738415,"y":9.88},{"x":1685584038410,"y":9.88},{"x":1685584338448,"y":9.79},{"x":1685584638454,"y":9.88},{"x":1685584938414,"y":9.88},{"x":1685585238420,"y":9.98},{"x":1685585538423,"y":9.89},{"x":1685585838440,"y":9.89},{"x":1685586138428,"y":9.84},{"x":1685586438423,"y":9.84},{"x":1685586738424,"y":9.79},{"x":1685587038648,"y":9.93},{"x":1685587338431,"y":9.79},{"x":1685587638450,"y":9.79},{"x":1685587938475,"y":9.88},{"x":1685588238559,"y":9.88},{"x":1685588538441,"y":9.88},{"x":1685588838584,"y":9.67},{"x":1685589138428,"y":9.58},{"x":1685589438536,"y":9.67},{"x":1685589738473,"y":9.67},{"x":1685590038433,"y":9.67},{"x":1685590338478,"y":9.67},{"x":1685590638761,"y":9.42},{"x":1685590938425,"y":9.42},{"x":1685591238442,"y":9.42},{"x":1685591538439,"y":9.31},{"x":1685591838504,"y":9.31},{"x":1685592138436,"y":9.34},{"x":1685592438435,"y":9.34},{"x":1685592738487,"y":9.38},{"x":1685593038723,"y":9.38},{"x":1685593338444,"y":9.38},{"x":1685593638424,"y":9.34},{"x":1685593938457,"y":9.34},{"x":1685594238655,"y":9.86},{"x":1685594538452,"y":9.86},{"x":1685594838449,"y":9.86},{"x":1685595138489,"y":9.84},{"x":1685595438547,"y":9.84},{"x":1685595738460,"y":9.78},{"x":1685596038492,"y":9.85},{"x":1685596338571,"y":9.85},{"x":1685596638545,"y":9.85},{"x":1685596938457,"y":9.76},{"x":1685597238477,"y":9.85},{"x":1685597538472,"y":9.8},{"x":1685597838494,"y":9.83},{"x":1685598138501,"y":9.86},{"x":1685598438509,"y":10.14},{"x":1685598738535,"y":10.14},{"x":1685599038819,"y":10.14},{"x":1685599338484,"y":10.07},{"x":1685599638529,"y":10.07},{"x":1685599938480,"y":10.14},{"x":1685600238698,"y":10.23},{"x":1685600538482,"y":10.1},{"x":1685600838527,"y":10.43},{"x":1685601138487,"y":10.43},{"x":1685601438740,"y":10.43},{"x":1685601738547,"y":10.45},{"x":1685602038498,"y":10.36},{"x":1685602338488,"y":10.43},{"x":1685602638682,"y":10.46},{"x":1685602938581,"y":10.46},{"x":1685603238508,"y":10.47},{"x":1685603538503,"y":10.47},{"x":1685603838572,"y":10.47},{"x":1685604138511,"y":10.47},{"x":1685604438579,"y":10.6},{"x":1685604738515,"y":10.51},{"x":1685605038560,"y":10.55},{"x":1685605338556,"y":11.07},{"x":1685605638563,"y":11.07},{"x":1685605938519,"y":11.07},{"x":1685606238594,"y":11.05},{"x":1685606538513,"y":11.12},{"x":1685606838518,"y":11.15},{"x":1685607138518,"y":11.15},{"x":1685607438879,"y":11.19},{"x":1685607738543,"y":11.19},{"x":1685608038530,"y":11.42},{"x":1685608338527,"y":11.33},{"x":1685608638628,"y":11.33},{"x":1685608938572,"y":11.54},{"x":1685609238526,"y":11.54},{"x":1685609538568,"y":11.54},{"x":1685609838674,"y":11.73},{"x":1685610138530,"y":11.54},{"x":1685610438525,"y":11.73},{"x":1685610738604,"y":11.81},{"x":1685611038666,"y":11.81},{"x":1685611338564,"y":11.72},{"x":1685611638584,"y":12.09},{"x":1685611938537,"y":12.09},{"x":1685612238596,"y":12.09},{"x":1685612538547,"y":12.11},{"x":1685612838540,"y":12.11},{"x":1685613138539,"y":12.07},{"x":1685613438767,"y":12.53},{"x":1685613738611,"y":12.64},{"x":1685614038551,"y":12.51},{"x":1685614338551,"y":12.64},{"x":1685614638741,"y":12.64},{"x":1685614938559,"y":12.64},{"x":1685615238587,"y":13.05},{"x":1685615538593,"y":13.15},{"x":1685615838836,"y":13.07},{"x":1685616138551,"y":13.07},{"x":1685616438549,"y":13.17},{"x":1685616738558,"y":13.26},{"x":1685617038760,"y":13.26},{"x":1685617338558,"y":13.36},{"x":1685617638534,"y":13.36},{"x":1685617938635,"y":13.73},{"x":1685618238566,"y":13.71},{"x":1685618538558,"y":13.71},{"x":1685618838593,"y":13.75},{"x":1685619138565,"y":13.75},{"x":1685619438673,"y":13.93},{"x":1685619738585,"y":13.93}],"labels":""}","payloadType":"json","x":150,"y":180,"wires":[["3eb08d4843164efc"]]},{"id":"41e847ff22249c0e","type":"ui_group","name":"Temperature","tab":"1d985094b1a81b0c","order":5,"disp":true,"width":"24","collapse":false,"className":""},{"id":"1d985094b1a81b0c","type":"ui_tab","name":"Wide View","icon":"dashboard","disabled":false,"hidden":false} {% endrenderFlow %}

3. Using sliders and persisting the current value

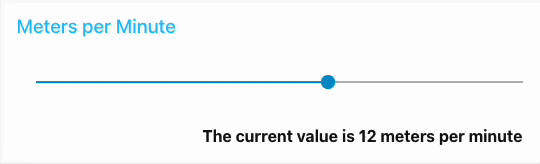

Sliders are a really useful user-interface element. Where you need to control the speed of a piece of machinery, having the ability to use a slider rather than manually typing in a value is a much better fit for shop-floor HMIs.

When using sliders in your dashboards, it's important to consider how you will persist the state of the slider. If you don't persist the state, you will find that a redeploy of your dashboard will set the slider back to the default value. That would also change the speed of your machine.

To retain the current value of the slider we can use Node-RED's context. Each time the slider value is updated, we store the value in context. Each time we deploy the flow, we can now load the value back from context.

If you'd like to view this slider and the flow which makes it work on your own Node-RED, you can import the flow below.

{% renderFlow 300 %} {"id":"05340e7a133098a6","type":"ui_slider","z":"0e6be5088cecccc1","name":"","label":"","tooltip":"","group":"41e847ff22249c0e","order":1,"width":0,"height":0,"passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":230,"y":300,"wires":[["945db61c94fc0704","ad7819da2cfbcd4e"]]},{"id":"849d76d146ff8c12","type":"inject","z":"0e6be5088cecccc1","name":"Inject on deploy","props":,"repeat":"","crontab":"","once":true,"onceDelay":0.1,"topic":"","x":160,"y":240,"wires":[["aeedb3c60965c1af"]]},{"id":"945db61c94fc0704","type":"change","z":"0e6be5088cecccc1","name":"Set global-slider-value = msg.payload","rules":{"t":"set","p":"slider-value","pt":"global","to":"payload","tot":"msg"},"action":"","property":"","from":"","to":"","reg":false,"x":450,"y":300,"wires":[[]]},{"id":"aeedb3c60965c1af","type":"change","z":"0e6be5088cecccc1","name":"Set msg.payload = global.slider-value","rules":{"t":"set","p":"payload","pt":"msg","to":"slider-value","tot":"global"},"action":"","property":"","from":"","to":"","reg":false,"x":410,"y":240,"wires":[["05340e7a133098a6"]]},{"id":"ad7819da2cfbcd4e","type":"ui_text","z":"0e6be5088cecccc1","group":"41e847ff22249c0e","order":2,"width":0,"height":0,"name":"","label":"","format":"The current value is meters per minute","layout":"row-spread","className":"","style":false,"font":"","fontSize":16,"color":"#000000","x":350,"y":340,"wires":},{"id":"41e847ff22249c0e","type":"ui_group","name":"Meters per Minute","tab":"466e33abb95e4dd4","order":5,"disp":true,"width":"10","collapse":false,"className":""},{"id":"466e33abb95e4dd4","type":"ui_tab","name":"Sliders","icon":"dashboard","order":3,"disabled":false,"hidden":false} {% endrenderFlow %}

We hope you found these tips useful, if you'd like to suggest some of your own tips which you think we should share in our future blog posts please get in touch. You can also read some of our previous Node-RED tips using the links below.
